Sale!

ELG-75-12DA Mean Well

Original price was: 80 AUD.Current price is: 20 AUD.

ELG-75-12DA

Brand: Mean Well
Stock: 5 pcs
Product quality: not in orginal package
Warranty: 24 months
GENUINE PRODUCTS GUARANTEED

Categories: , ,

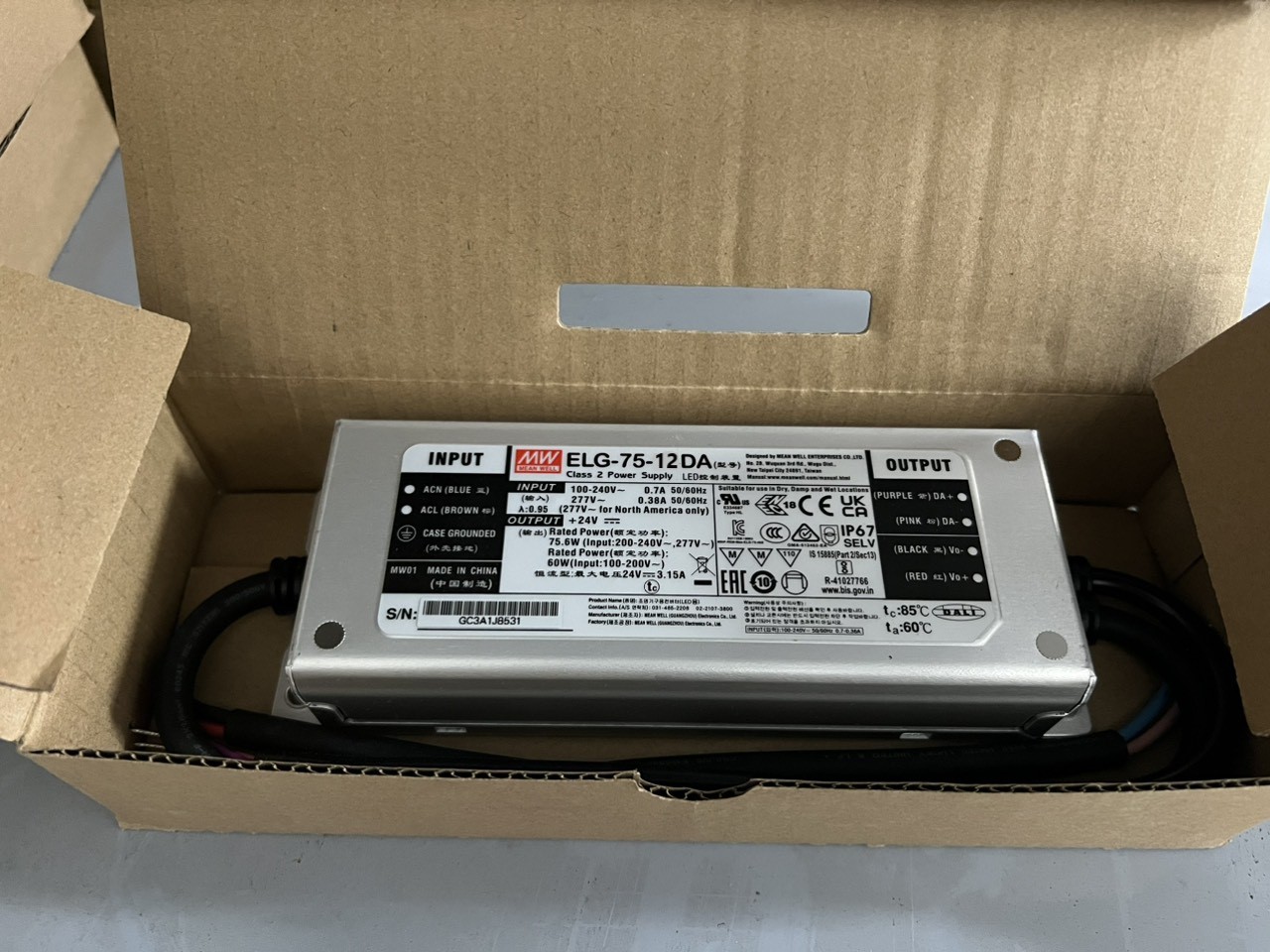

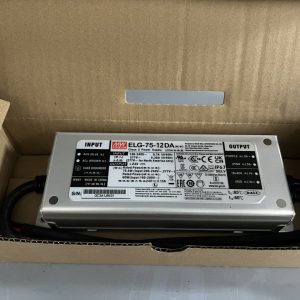

ELG-75-12DA Mean Well

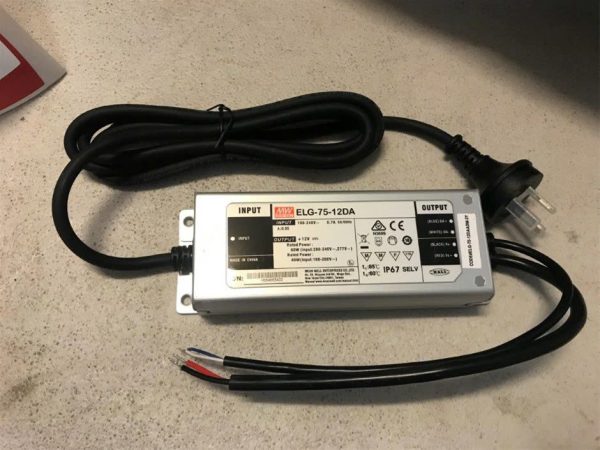

ELG-75-12DA Mean Well

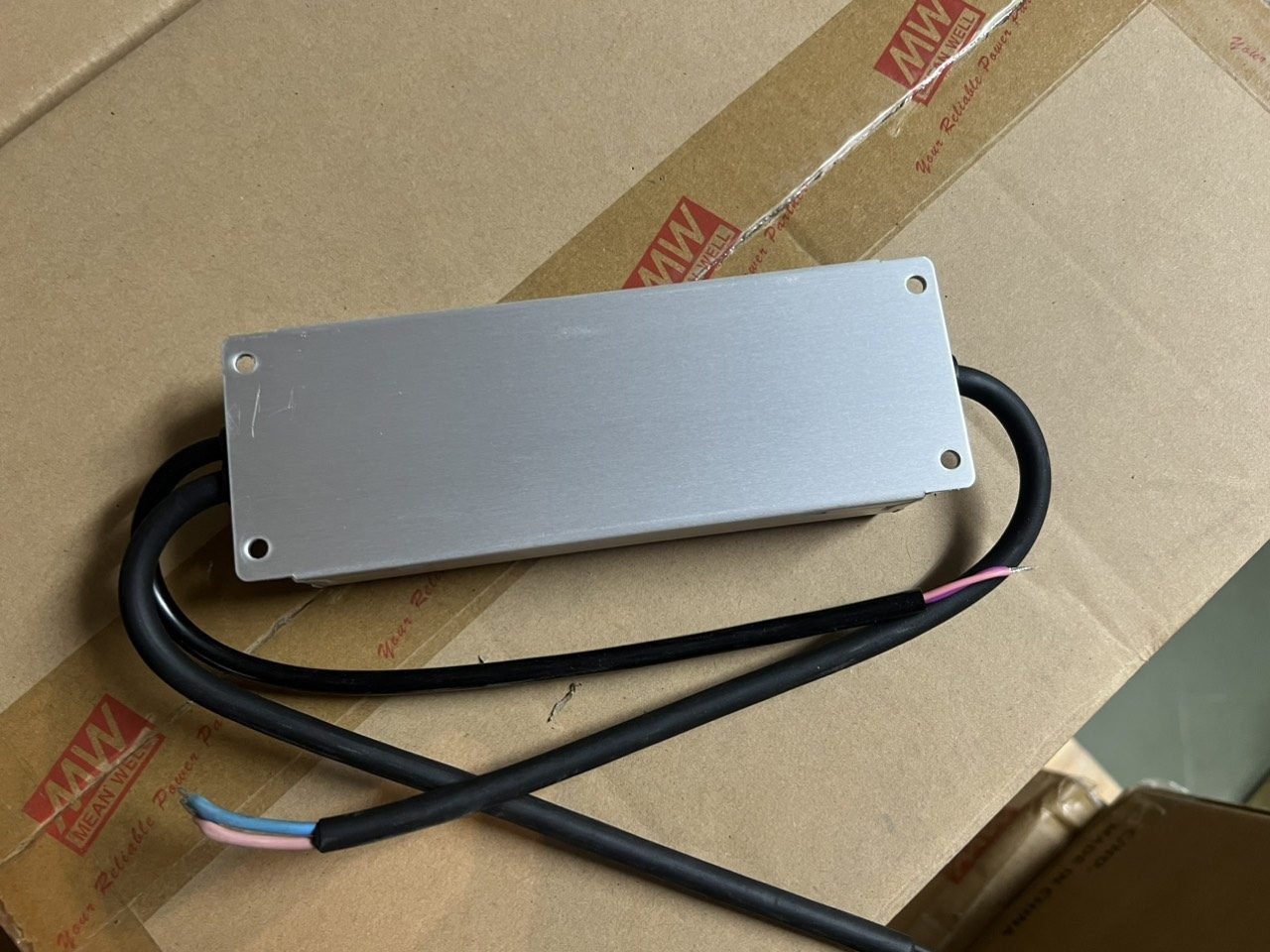

ELG-75-12DA Mean Well

SPECIFICATION

SPECIFICATION

MODEL ELG-75-12 ELG-75-24 ELG-75-36 ELG-75-42 ELG-75-48


























OUTPUT

 DC VOLTAGE 12V 24V 36V 42V 48V
CONSTANT CURRENT REGION Note.2 6 ~ 12V 12 ~ 24V 18 ~ 36V 21 ~ 42V 24 ~ 48V
RATED CURRENT 5A 3.15A 2.1A 1.8A 1.6A




RATED POWER      Note.5

 200VAC ~ 305VAC
60W 75.6W 75.6W 75.6W 76.8W
100VAC ~ 180VAC
48W 60W 60W 60W 60W
RIPPLE & NOISE (max.) Note.3 150mVp-p 200mVp-p 250mVp-p 250mVp-p 250mVp-p
VOLTAGE ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
10.8 ~ 13.2V 21.6 ~ 26.4V 32.4 ~ 39.6V 37.8 ~ 46.2V 43.2 ~ 52.8V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
2.5 ~ 5A 1.57 ~ 3.15A 1.05 ~ 2.1A 0.9 ~ 1.8A 0.8 ~ 1.6A
VOLTAGE TOLERANCE Note.4 ±3.0% ±3.0% ±2.5% ±2.5% ±2.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±2.0% ±1.0% ±1.0% ±0.5% ±0.5%
SETUP, RISE TIME  Note.6 500ms, 100ms/115VAC, 230VAC
HOLD UP TIME (Typ.) 10ms/ 230VAC 10ms/ 115VAC(at full load)


















INPUT

 VOLTAGE RANGE                                Note.5 100 ~ 305VAC    142 ~ 431VDC

(Please refer to “STATIC CHARACTERISTIC” section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load

(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section)
TOTAL HARMONIC DISTORTION THD< 20%(@load¾50%/115VC,230VAC; @load¾75%/277VAC)

(Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.) 85% 88% 89% 90% 90%
AC CURRENT 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.) COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA-Type






PROTECTION

 OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 14 ~ 18V 28 ~ 34V 41 ~ 48V 47 ~ 54V 54 ~ 62V
Shut down output voltage, re-power on to recover
OVER TEMPERATURE Shut down output voltage, re-power on to recover








ENVIRONMENT

 WORKING TEMP. Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase=+85℃
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/℃ (0 ~ 60℃)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes








SAFETY & EMC

 SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 independent, EN62384; EAC TP TC 004;BIS IS15885(for 12B/24B/36A/42A/48A only);IP65 or IP67; GB19510.1, GB19510.14 approved
DALI STANDARDS Compliance to IEC62386-101, 102, 207 for DA-Type only
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC  I/P-FG:2.0KVAC  O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION Compliance to EN55015,EN61000-3-2 Class C (@load≧50%) ; EN61000-3-3; GB17743, GB17625.1;EAC TP TC 020
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020


OTHERS

 MTBF 1172K hrs min. Telcordia SR-332 (Bellcore)                   331Khrs min.      MIL-HDBK-217F (25℃)
DIMENSION 180*63*35.5mm (L*W*H)
PACKING 0.8Kg;16pcs/13.4Kg/0.67CUFT
