HLG-40H- SPEC Mean Well

75 AUD – 77 AUD

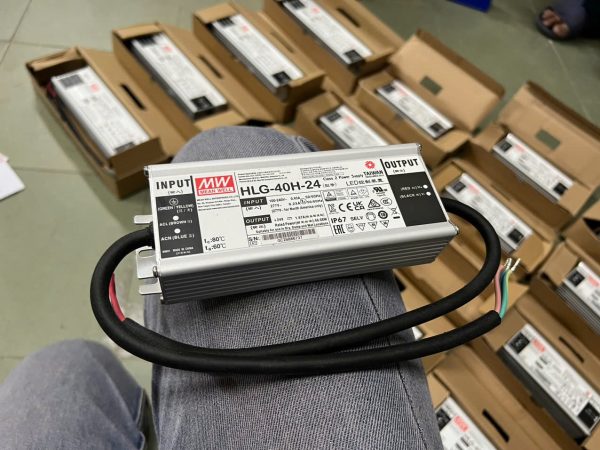

HLG-40H

Brand: Mean Well
Warranty: 24 months
GENUINE PRODUCTS GUARANTEED

SKU: N/A Categories: ,

HLG-40H- SPEC

Catalogue HLG-40H

MODEL HLG-40H-12 HLG-40H-15 HLG-40H-20 HLG-40H-24 HLG-40H-30 HLG-40H-36 HLG-40H-42 HLG-40H-48 HLG-40H-54
















OUTPUT

 DC VOLTAGE 12V 15V 20V 24V 30V 36V 42V 48V 54V
CONSTANT CURRENT REGION Note.4 7.2 ~12V 9 ~ 15V 12 ~ 20V 14.4 ~ 24V 18 ~ 30V 21.6 ~ 36V 25.2 ~ 42V 28.8 ~ 48V 32.4 ~ 54V
RATED CURRENT 3.33A 2.67A 2A 1.67A 1.34A 1.12A 0.96A 0.84A 0.75A
RATED POWER 39.96W 40.05W 40W 40.08W 40.2W 40.32W 40.32W 40.32W 40.5W
RIPPLE & NOISE (max.) Note.2 150mVp-p 150mVp-p 150mVp-p 200mVp-p 200mVp-p 200mVp-p 200mVp-p 300mVp-p 300mVp-p
VOLTAGE ADJ. RANGE Adjustable for A-Type only (via built-in potentiometer)
10.8 ~ 13.5V 13.5 ~ 17V 17 ~ 22V 22 ~ 27V 27 ~ 33V 33 ~ 40V 40 ~ 46V 44 ~ 53V 49 ~ 58V
CURRENT ADJ. RANGE Adjustable for A-Type only (via built-in potentiometer)
2 ~ 3.33A 1.6 ~ 2.67A 1.2 ~ 2A 1 ~ 1.67A 0.8 ~ 1.34A 0.67 ~ 1.12A 0.58 ~ 0.96A 0.5 ~ 0.84A 0.45 ~ 0.75A
VOLTAGE TOLERANCE Note.3 ±2.5% ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±2.0% ±1.5% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME                            Note.6 500ms,80ms/115VAC  500ms,80ms/230VAC
HOLD UP TIME (Typ.) 16ms / 115VAC, 230VAC
















INPUT

 VOLTAGE RANGE                            Note.5 90 ~ 305VAC     127 ~ 431VDC

(Please refer to “STATIC CHARACTERISTIC” section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load

(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section)
TOTAL HARMONIC DISTORTION THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)

(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.) 86.5% 86.5% 88% 88% 88.5% 88.5% 88.5% 89.5% 89.5%
AC CURRENT (Typ.) 0.43A / 115VAC    0.24A / 230VAC    0.23A / 277VAC
INRUSH CURRENT(Typ.) COLD START 50A(twidth=210μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC






PROTECTION

 OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 15 ~ 21V 18 ~ 24V 23 ~ 30V 28 ~ 35V 35 ~ 43V 41 ~ 49V 48 ~ 58V 54 ~ 65V 59 ~ 68V
Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover






ENVIRONMENT

 WORKING TEMP. Tcase= -40 ~ +80℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase= +80℃
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/℃ (0 ~ 60℃)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes




SAFETY & EMC

 SAFETY STANDARDS  Note.8 UL8750(type”HL”), CSA C22.2 No. 250.0-08 , EN/AS/NZS 61347-1,EN/AS/NZS 61347-2-13 independent ,GB19510.1,GB19510.14,EAC TP TC 004,

IP65 or IP67 approved ;optional models for  J61347-1,J61347-2-13 ; design refer to UL60950-1, TUV EN60950-1, EN60335-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC  I/P-FG:2KVAC  O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION                            Note.8 Compliance to EN55015, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020


OTHERS

 MTBF 1131.9K hrs min. Telcordia SR-332 (Bellcore) ; 336.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION 171*61.5*36.8mm (L*W*H)
PACKING 0.73Kg; 20pcs/15.6Kg/0.9CUFT

Contact information: Van Hao Pty Ltd- Mean Well Australia

–  Address: 1A Welfare Parade Ashburton VIC, 3147Australia
– Phone: +61398853030
– Email: meanwell168@gmail.com / nguonvn.meanwell@gmail.com
– Website: https://meanwellaustralia.au/

Voltage Required

3.3V, 5V, 12V, 15V, 24V, 27V, 36V, 48V
