HLG-80H- SPEC Mean Well

87 AUD – 90 AUD

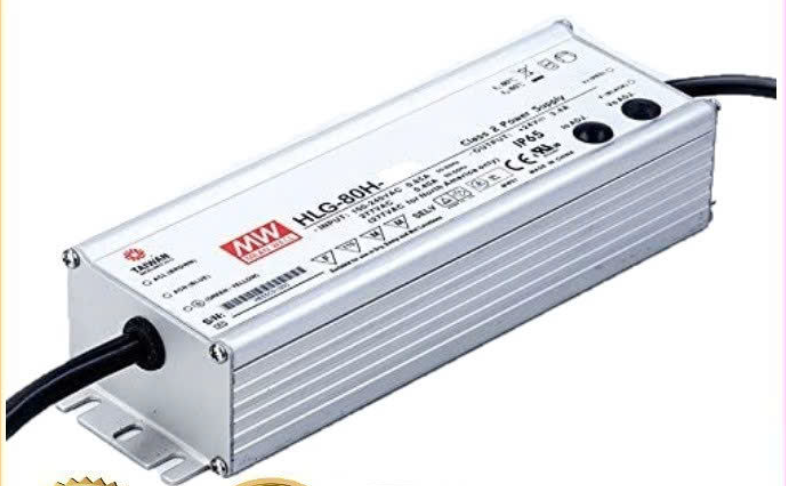

HLG-80H

Brand: Mean Well
Product quality: 100% new
Warranty: 24 months
GENUINE PRODUCTS GUARANTEED



SKU: N/A Category:

HLG- 80H

Catalogue HLG 80H

MODEL HLG-80H-12 HLG-80H-15 HLG-80H-20 HLG-80H-24 HLG-80H-30 HLG-80H-36 HLG-80H-42 HLG-80H-48 HLG-80H-54
















OUTPUT

 DC VOLTAGE 12V 15V 20V 24V 30V 36V 42V 48V 54V
CONSTANT CURRENT REGION Note.4 7.2 ~12V 9 ~ 15V 12 ~ 20V 14.4 ~ 24V 18 ~ 30V 21.6 ~ 36V 25.2 ~ 42V 28.8 ~ 48V 32.4 ~ 54V
RATED CURRENT 5A 5A 4A 3.4A 2.7A 2.3A 1.95A 1.7A 1.5A
RATED POWER 60W 75W 80W 81.6W 81W 82.8W 81.9W 81.6W 81W
RIPPLE & NOISE (max.) Note.2 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 200mVp-p 200mVp-p 200mVp-p 200mVp-p
VOLTAGE ADJ. RANGE Adjustable for A-Type only (via built-in potentiometer)
10.8 ~ 13.5V 13.5 ~ 17V 17 ~ 22V 22 ~ 27V 27 ~ 33V 33 ~ 40V 38 ~ 46V 43 ~ 53V 49 ~ 58V
CURRENT ADJ. RANGE Adjustable for A-Type only (via built-in potentiometer)
3 ~ 5A 3 ~ 5A 2.4 ~ 4A 2.04 ~ 3.4A 1.62 ~ 2.7A 1.38 ~ 2.3A 1.17 ~ 1.95A 1.02 ~ 1.7A 0.9 ~ 1.5A
VOLTAGE TOLERANCE Note.3 ±2.5% ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±2.0% ±1.5% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME                        Note.6 1200ms,200ms/115VAC  500ms,200ms/230VAC
HOLD UP TIME (Typ.) 16ms at full load  230VAC /115VAC
















INPUT

 VOLTAGE RANGE                        Note.5 90 ~ 305VAC           127 ~ 431VDC

(Please refer to “STATIC CHARACTERISTIC” section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF≧0.96/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC @ full load

(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section)
TOTAL HARMONIC DISTORTION THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)

(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.) 88% 89% 90% 90.5% 91% 91% 91% 91% 91%
AC CURRENT (Typ.) 0.85A / 115VAC          0.425A / 230VAC           0.4A / 277VAC
INRUSH CURRENT (Typ.) COLD START 70A(twidth=485μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC






PROTECTION

 OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 14 ~ 17V 18 ~ 24V 23 ~ 30V 28 ~ 35V 35 ~ 43V 41 ~ 49V 48 ~ 58V 54 ~ 63V 59 ~ 68V
Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover






ENVIRONMENT

 WORKING TEMP. Tcase= -40 ~ +80℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase= +80℃
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/℃ (0 ~ 60℃)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes








SAFETY & EMC



SAFETY STANDARDS  Note.8

 UL8750(type”HL”), CSA C22.2 No. 250.0-08, UL8750 LISTED for HLG-80H- BL;EN/AS/NZS 61347-1,EN/AS/NZS 61347-2-13 independent, optional models for J61347-1, J61347-2-13, GB19510.1,GB19510.14,EAC TP TC 004,BIS IS15885(for 36A,54A only),IP65 or IP67

approved ; Design refer to UL60950-1, TUV EN60950-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC  I/P-FG:2KVAC  O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION                        Note.8 Compliance to En55015, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020


OTHERS

 MTBF 357.8K hrs min.       MIL-HDBK-217F (25℃)
DIMENSION 195.6*61.5*38.8mm (L*W*H)
PACKING 0.84Kg; 16pcs/14.4Kg/0.54CUFT
NOTE 1.  All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.

2.  Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3.  Tolerance : includes set up tolerance, line regulation and load regulation.

4.  Please refer to “DRIVING METHODS OF LED MODULE”.

5.  De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.

6.  Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.

7.  The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.

8.  To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.

9.   This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.

10.  Please refer to the warranty statement on MEAN WELL’s website at http://www.meanwell.com
