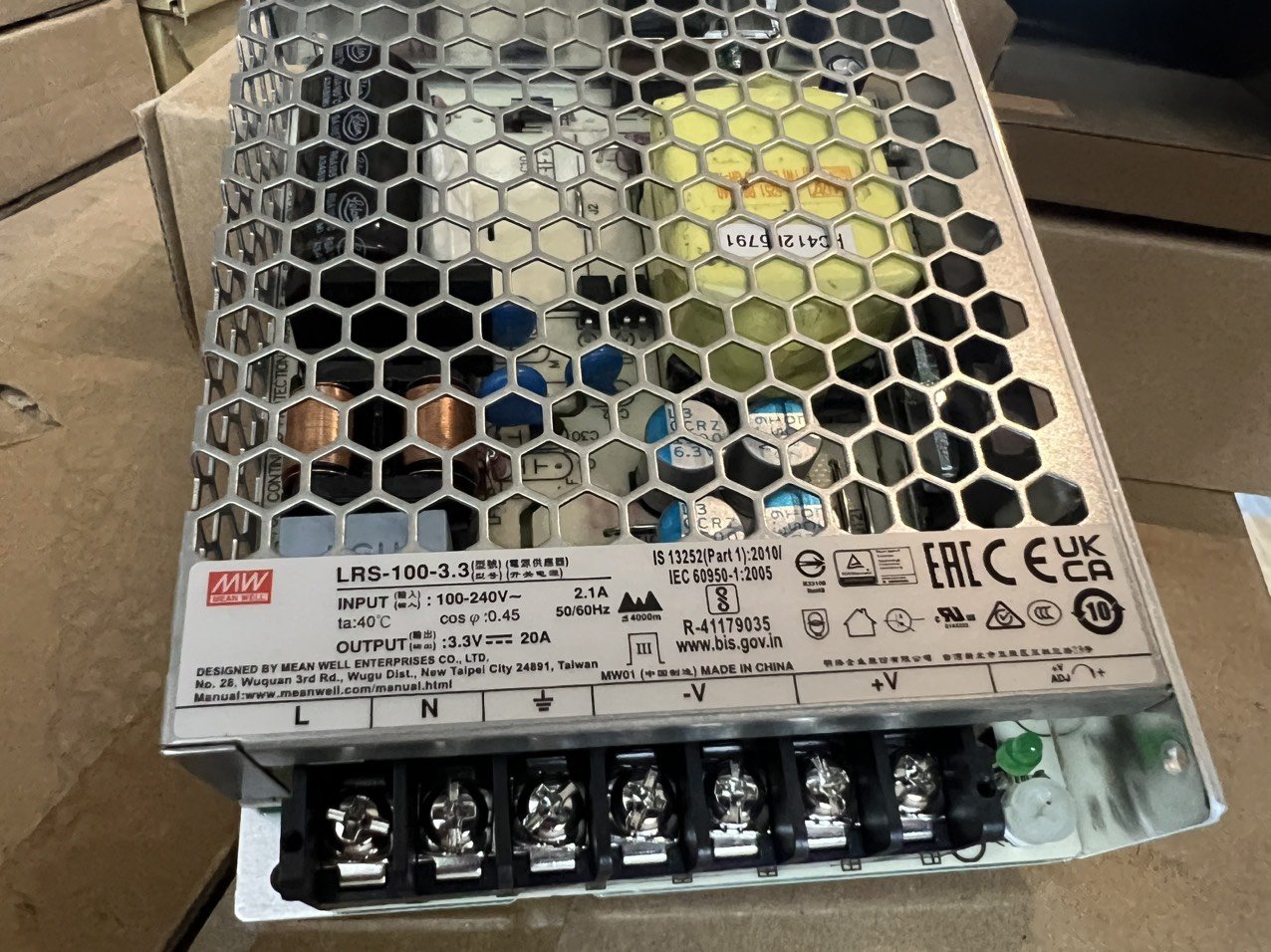

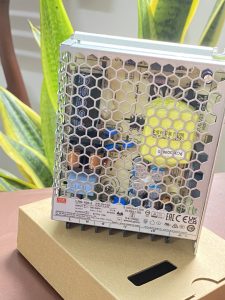

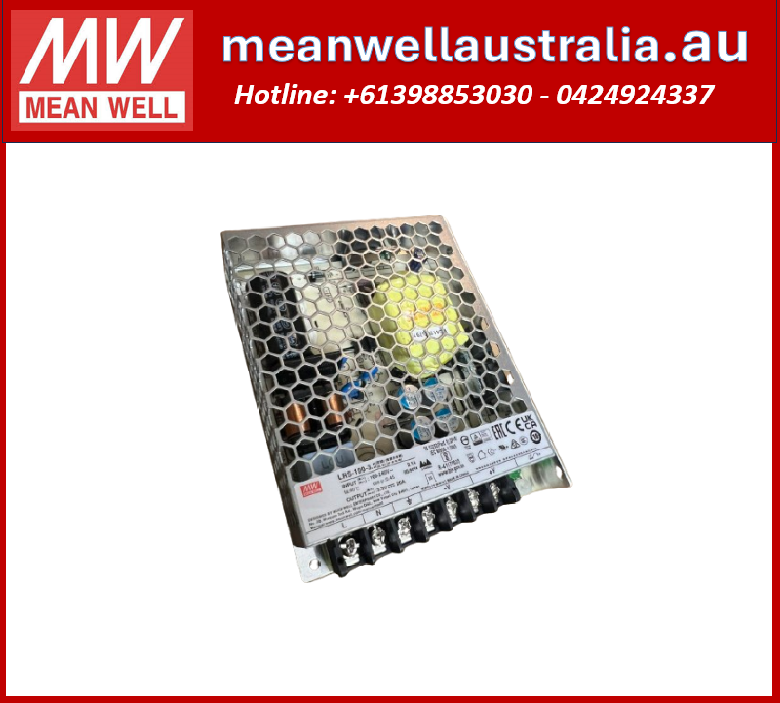

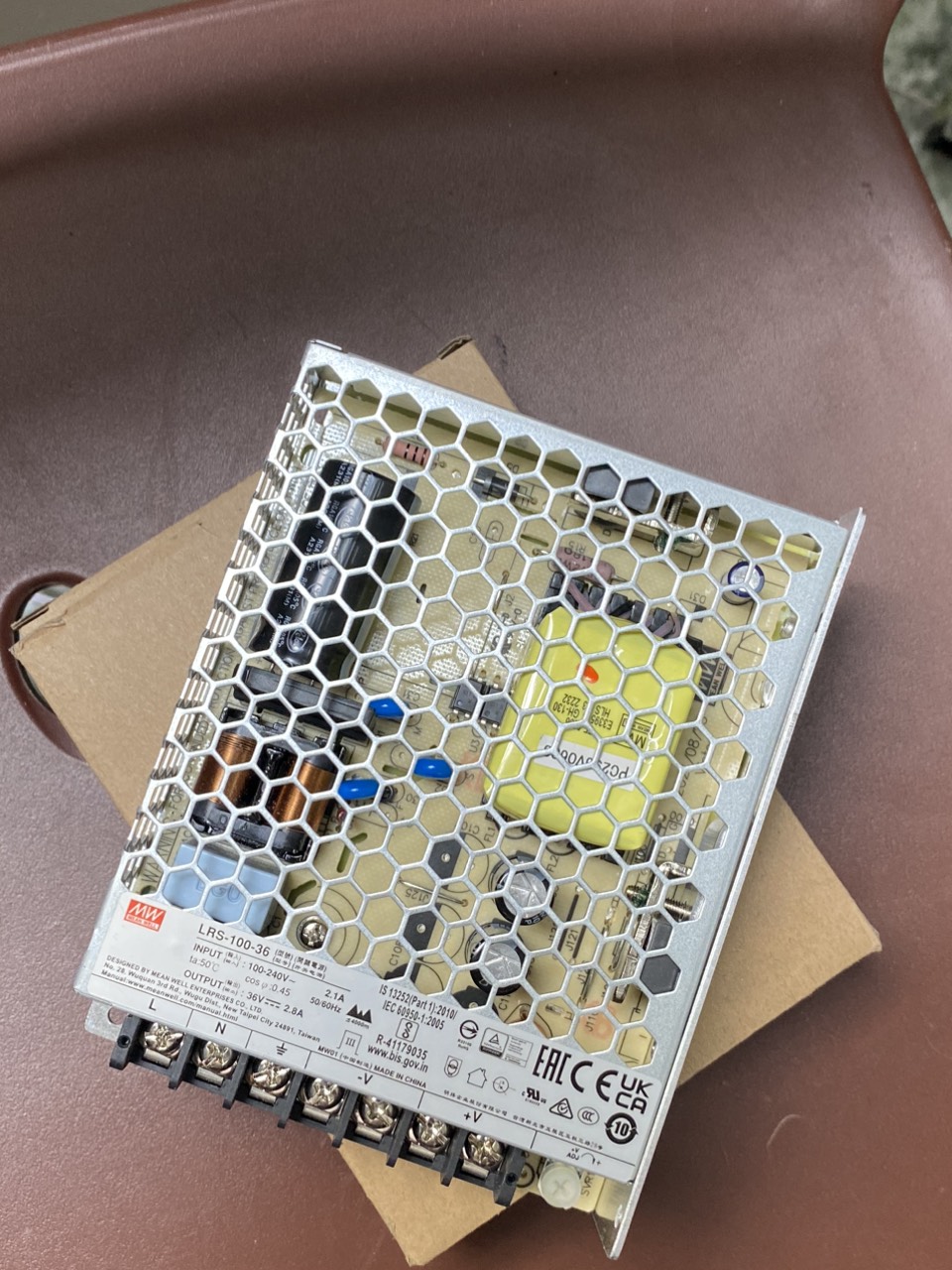

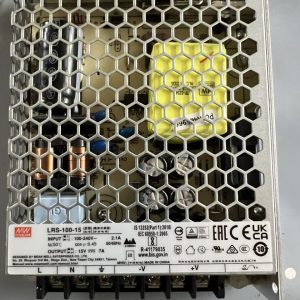

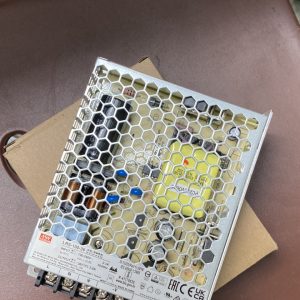

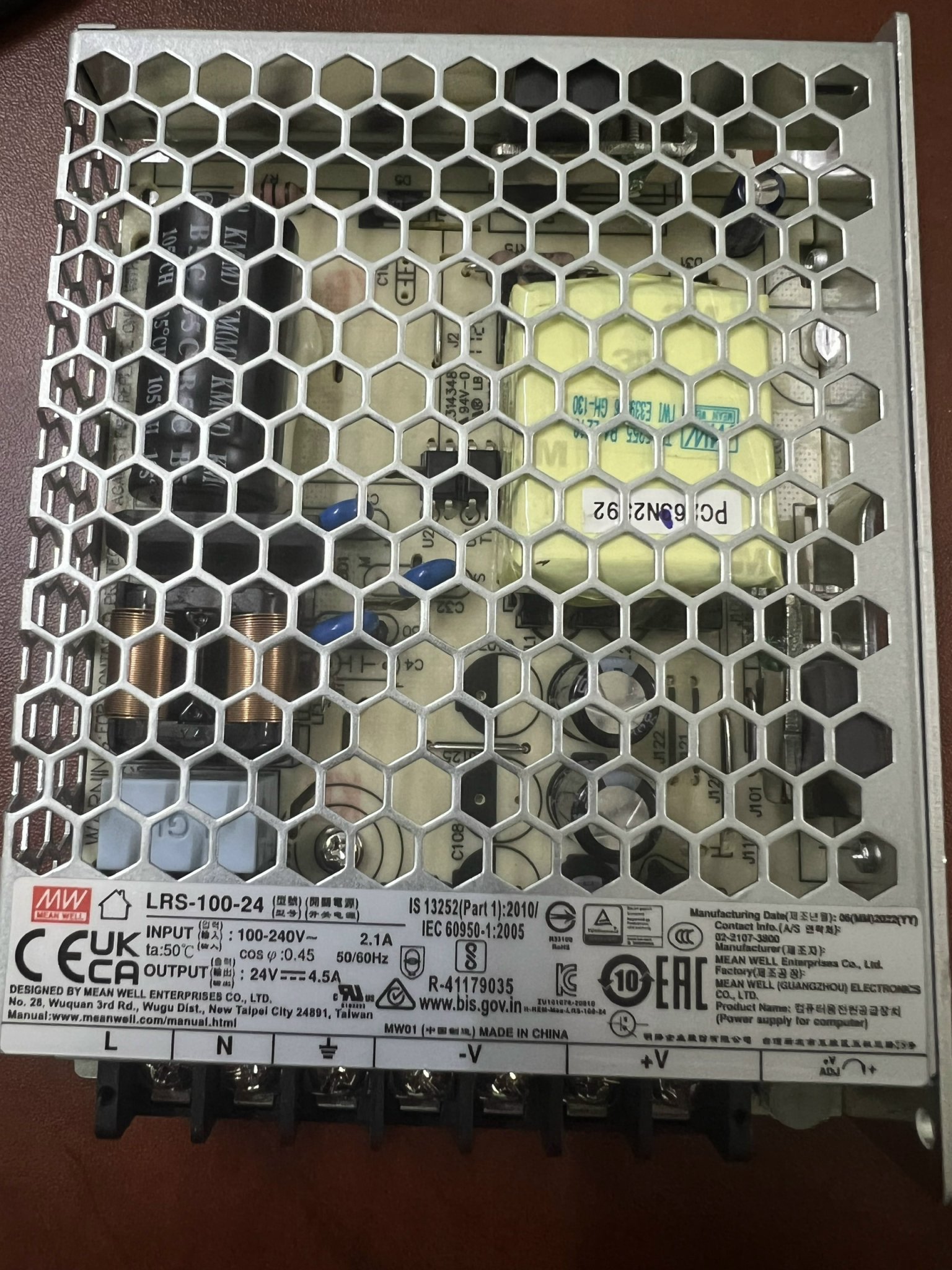

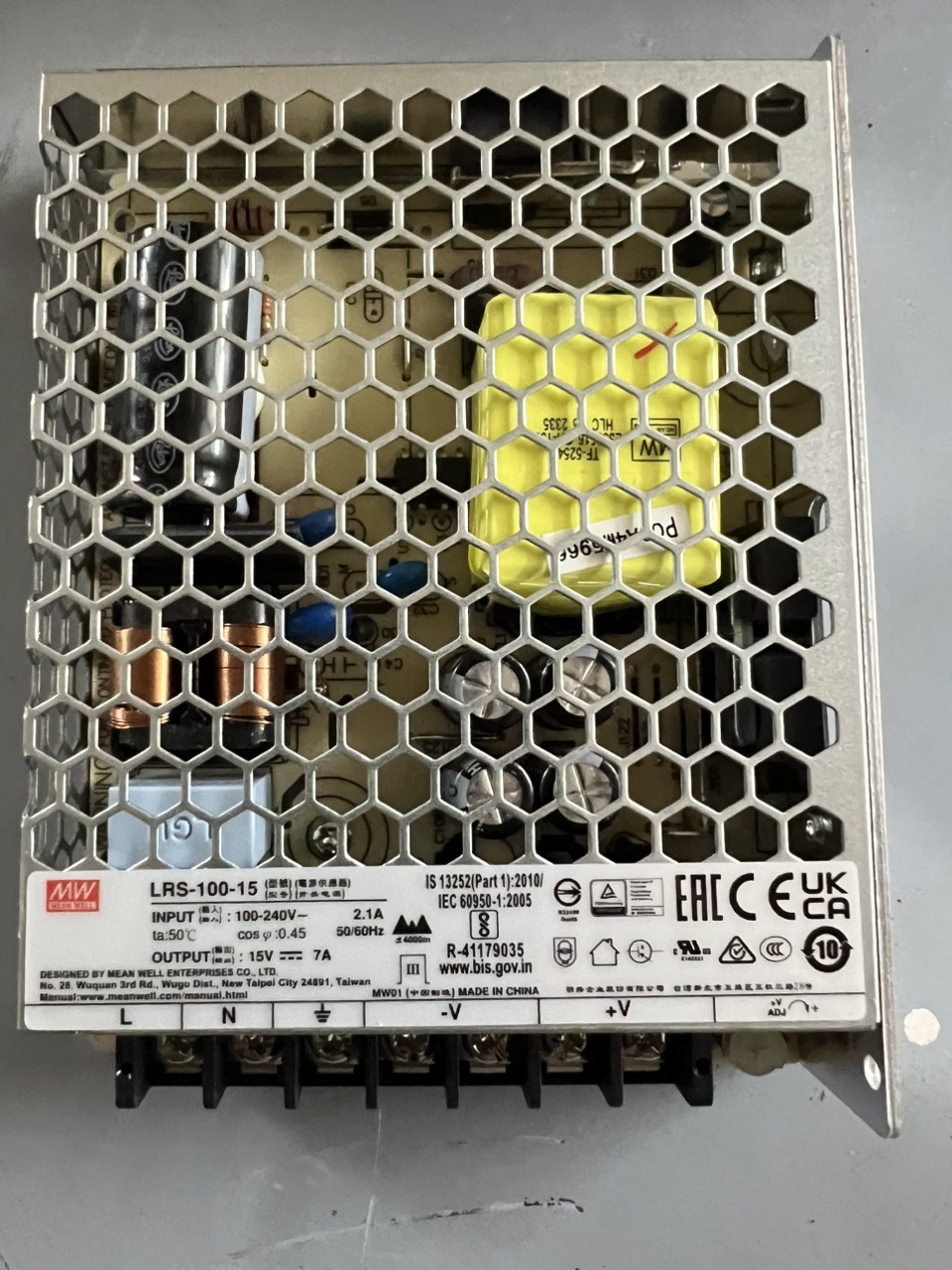

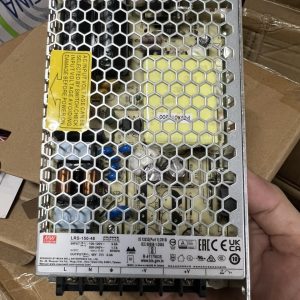

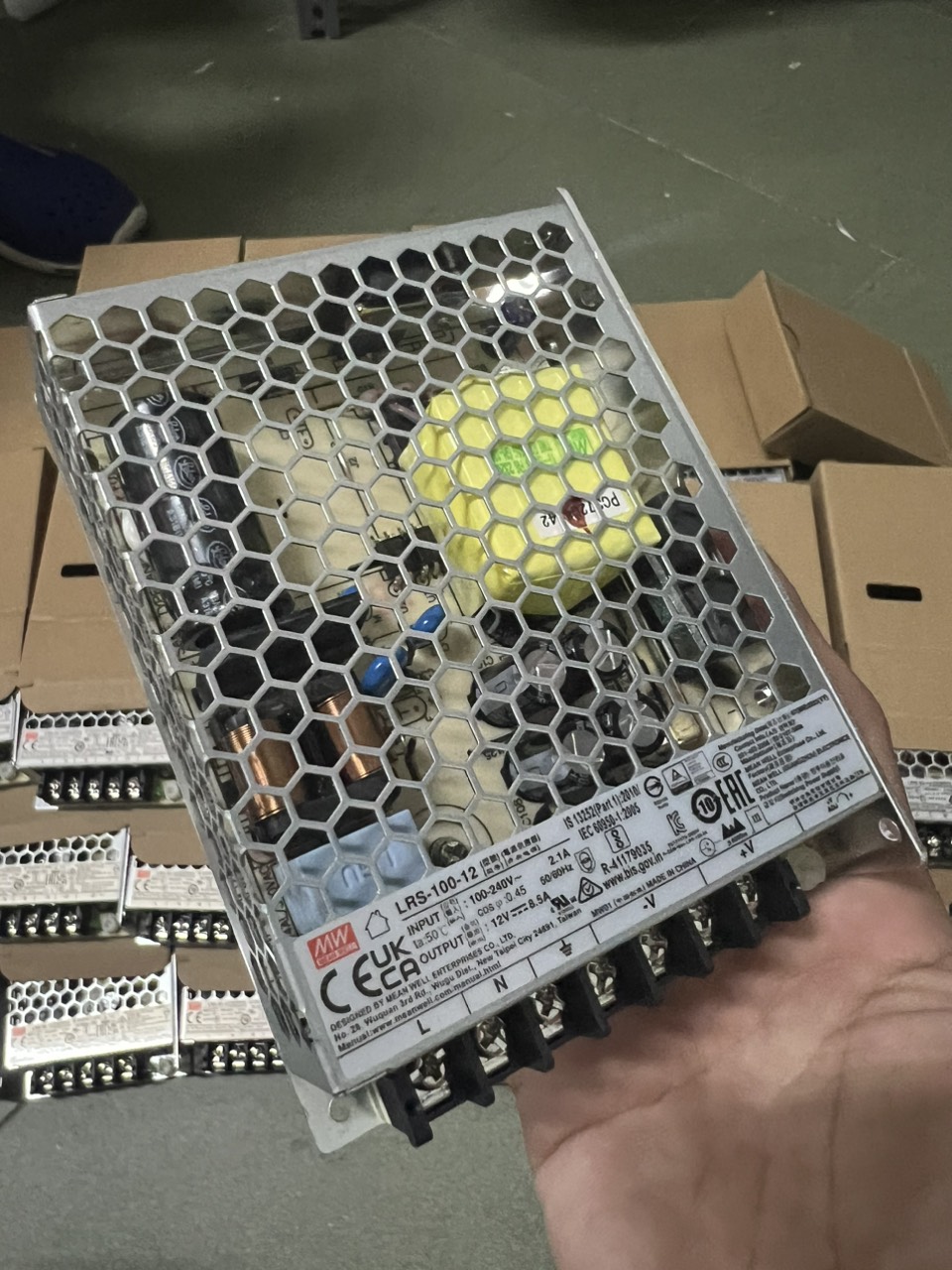

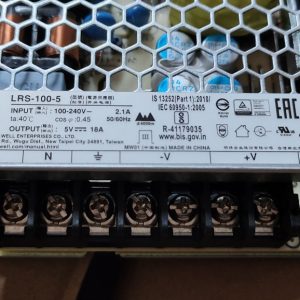

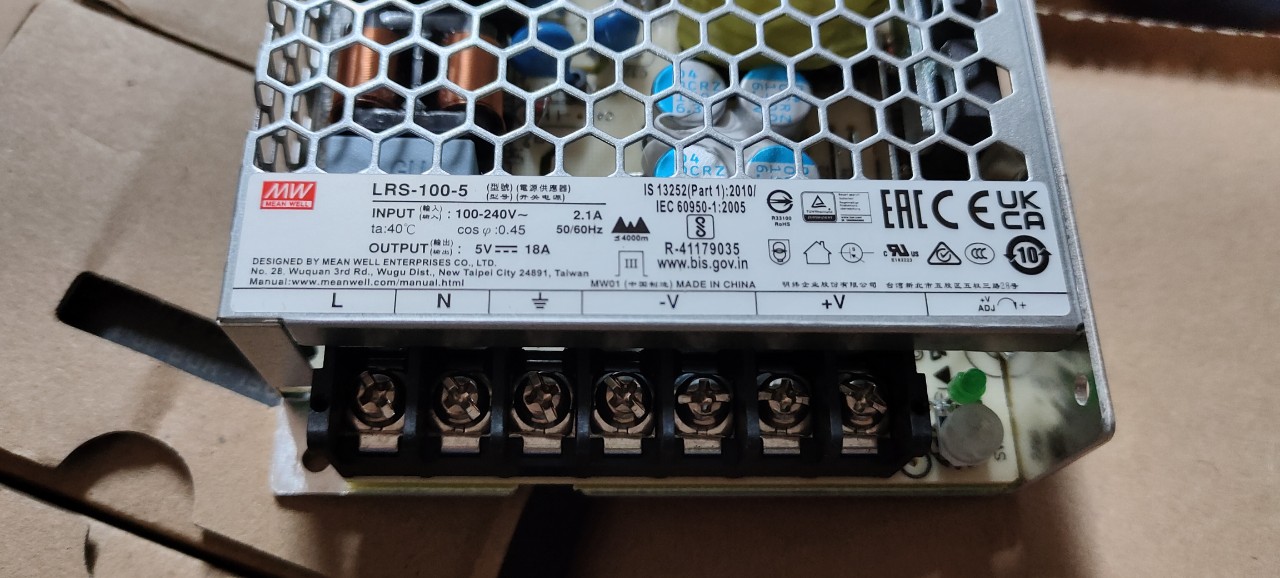

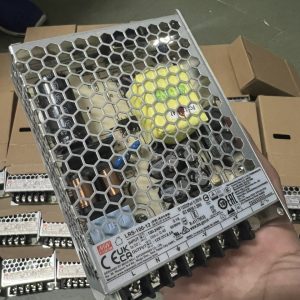

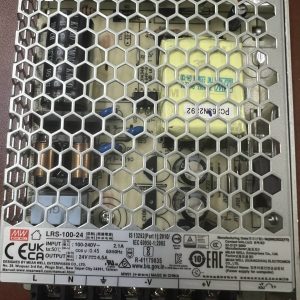

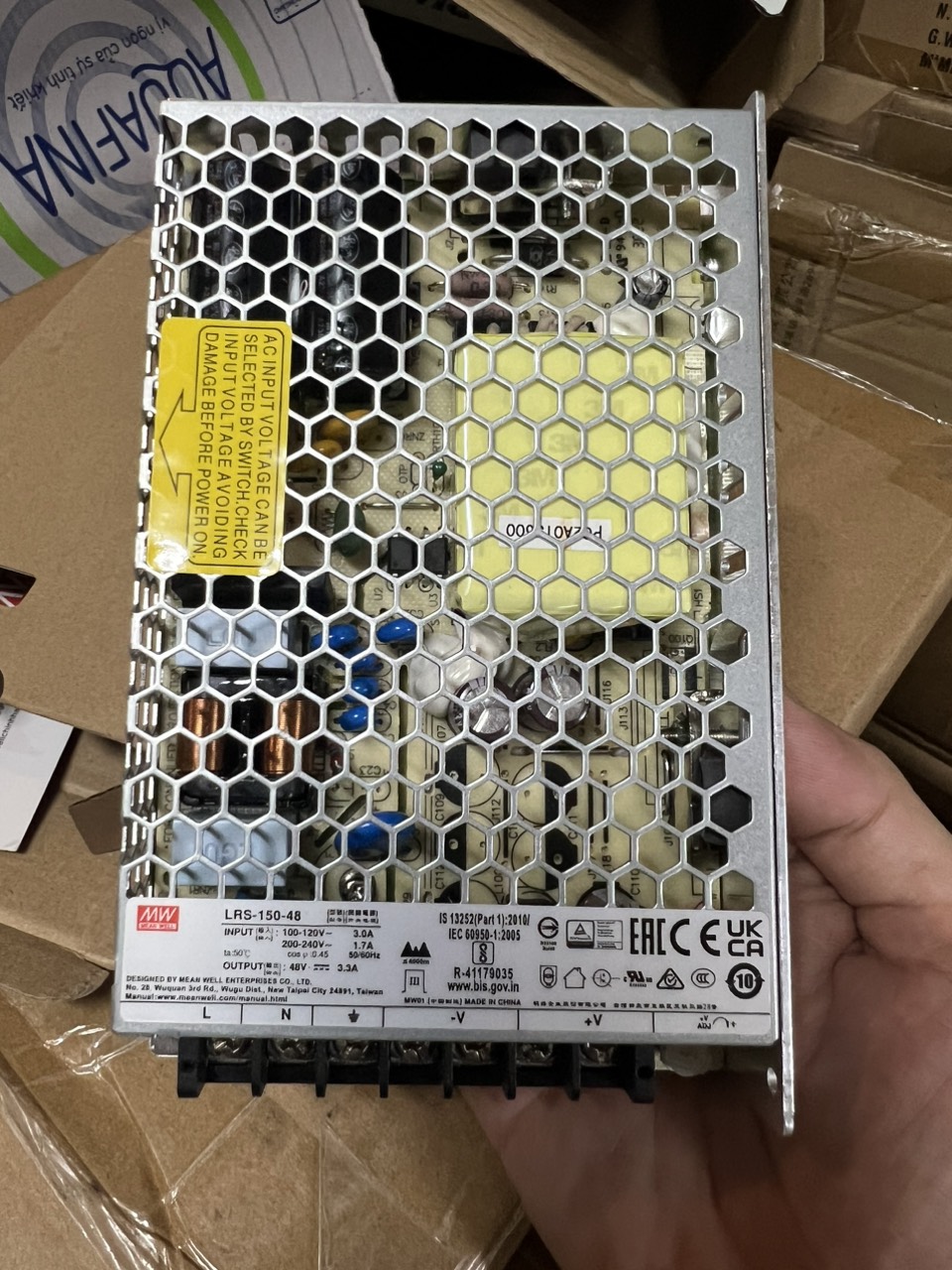

LRS-100 Mean Well

34 AUD – 36 AUD

LRS-100

Brand: Mean Well
Warranty: 24 months
GENUINE PRODUCTS GUARANTEED

SKU: N/A Categories: ,

LRS-100

Mean Well



MODEL LRS-100-3.3 LRS-100-5 LRS-100-12 LRS-100-15 LRS-100-24 LRS-100-36 LRS-100-48














OUTPUT

 DC VOLTAGE 3.3V 5V 12V 15V 24V 36V 48V
RATED CURRENT 20A 18A 8.5A 7A 4.5A 2.8A 2.3A
CURRENT RANGE 0 ~ 20A 0 ~ 18A 0 ~ 8.5A 0 ~ 7A 0 ~ 4.5A 0 ~ 2.8A 0 ~ 2.3A
RATED POWER 66W 90W 102W 105W 108W 100.8W 110.4W
RIPPLE & NOISE (max.) Note.2 100mVp-p 100mVp-p 120mVp-p 120mVp-p 150mVp-p 200mVp-p 200mVp-p
VOLTAGE ADJ. RANGE 2.97 ~ 3.6V 4.5 ~ 5.5V 10.2 ~ 13.8V 13.5 ~ 18V 21.6 ~ 28.8V 32.4 ~ 39.6V 43.2 ~ 52.8V
VOLTAGE TOLERANCE Note.3 ±3.0% ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION Note.4 ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION Note.5 ±2.0% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 500ms, 30ms/230VAC  500ms,30ms/115VAC at full load
HOLD UP TIME (Typ.) 55ms/230VAC  10ms/115VAC at full load






INPUT

 VOLTAGE RANGE 85 ~ 264VAC     120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 84.5% 86% 88% 88.5% 90% 90.5% 91%
AC CURRENT (Typ.) 1.9A/115VAC     1.2A/230VAC
INRUSH CURRENT (Typ.) COLD START 50A/230VAC
LEAKAGE CURRENT <0.75mA / 240VAC




PROTECTION



OVER LOAD

 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed


OVER VOLTAGE

 3.8 ~ 4.45V 5.75 ~ 6.75V 13.8 ~ 16.2V 18.75 ~ 21.75V 28.8 ~ 33.6V 41.4 ~ 48.6V 55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover






ENVIRONMENT

 WORKING TEMP. -30 ~ +70℃ (Refer to “Derating Curve”)
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/℃ (0 ~ 50℃)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY Ⅲ; Compliance to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters




SAFETY & EMC

(Note 8)

 SAFETY STANDARDS UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1, EAC TP TC 004, AS/NZS 60950.1(by CB) approved
WITHSTAND VOLTAGE I/P-O/P:4KVAC  I/P-FG:2KVAC  O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION Compliance to EN55032 (CISPR32) Class B, EN55014, EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020


OTHERS

 MTBF 720.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION 129*97*30mm (L*W*H)
PACKING 0.34Kg ; 40pcs/14.6Kg/0.92CUFT



Contact information: Van Hao Pty Ltd- Mean Well Australia

–  Address: 1A Welfare Parade Ashburton VIC, 3147Australia
– Phone: +61398853030
– Email: meanwell168@gmail.com / nguonvn.meanwell@gmail.com
– Website: https://meanwellaustralia.au/

Voltage Required

3.3V, 5V, 12V, 15V, 24V, 27V, 36V, 48V
