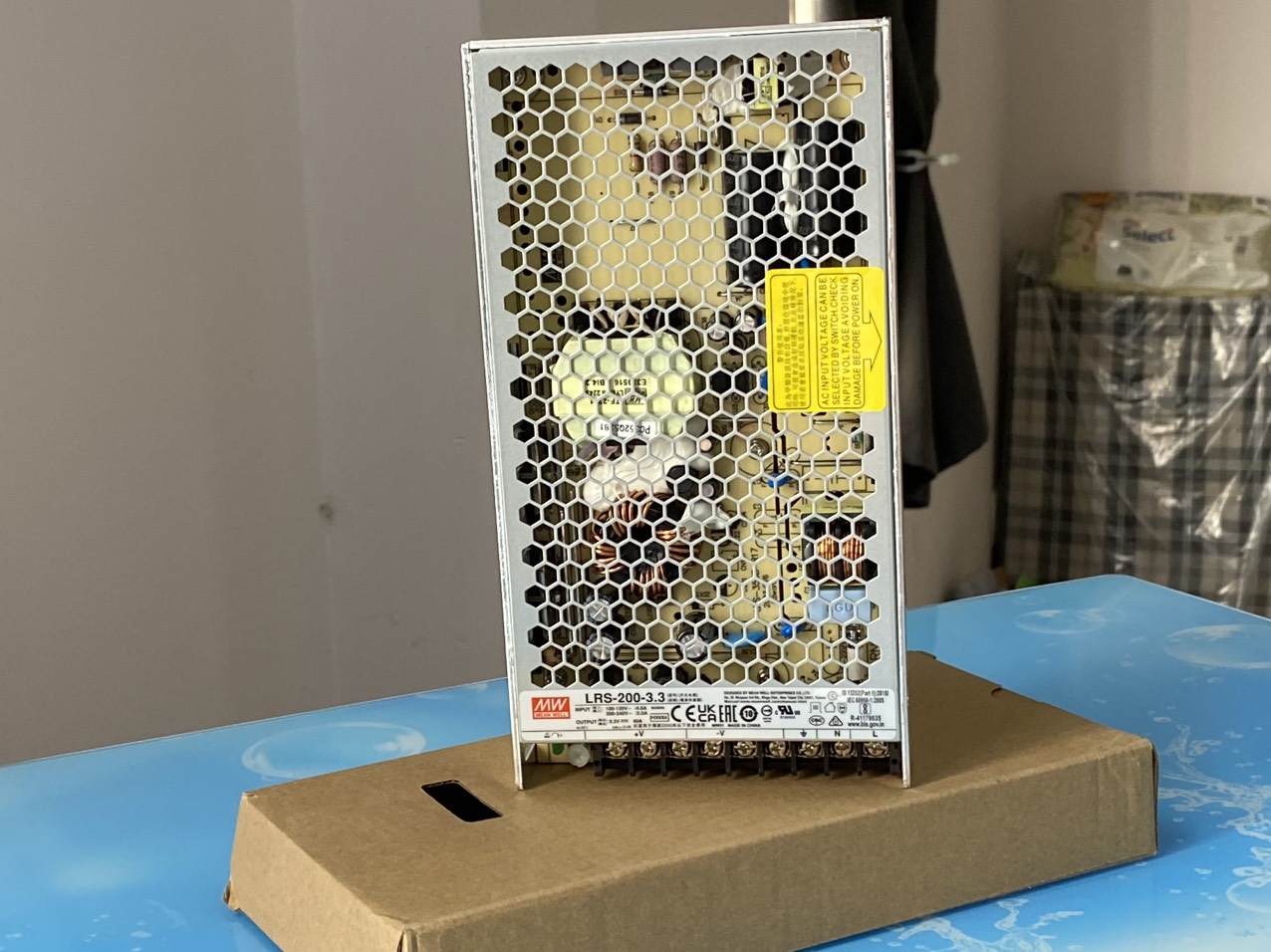

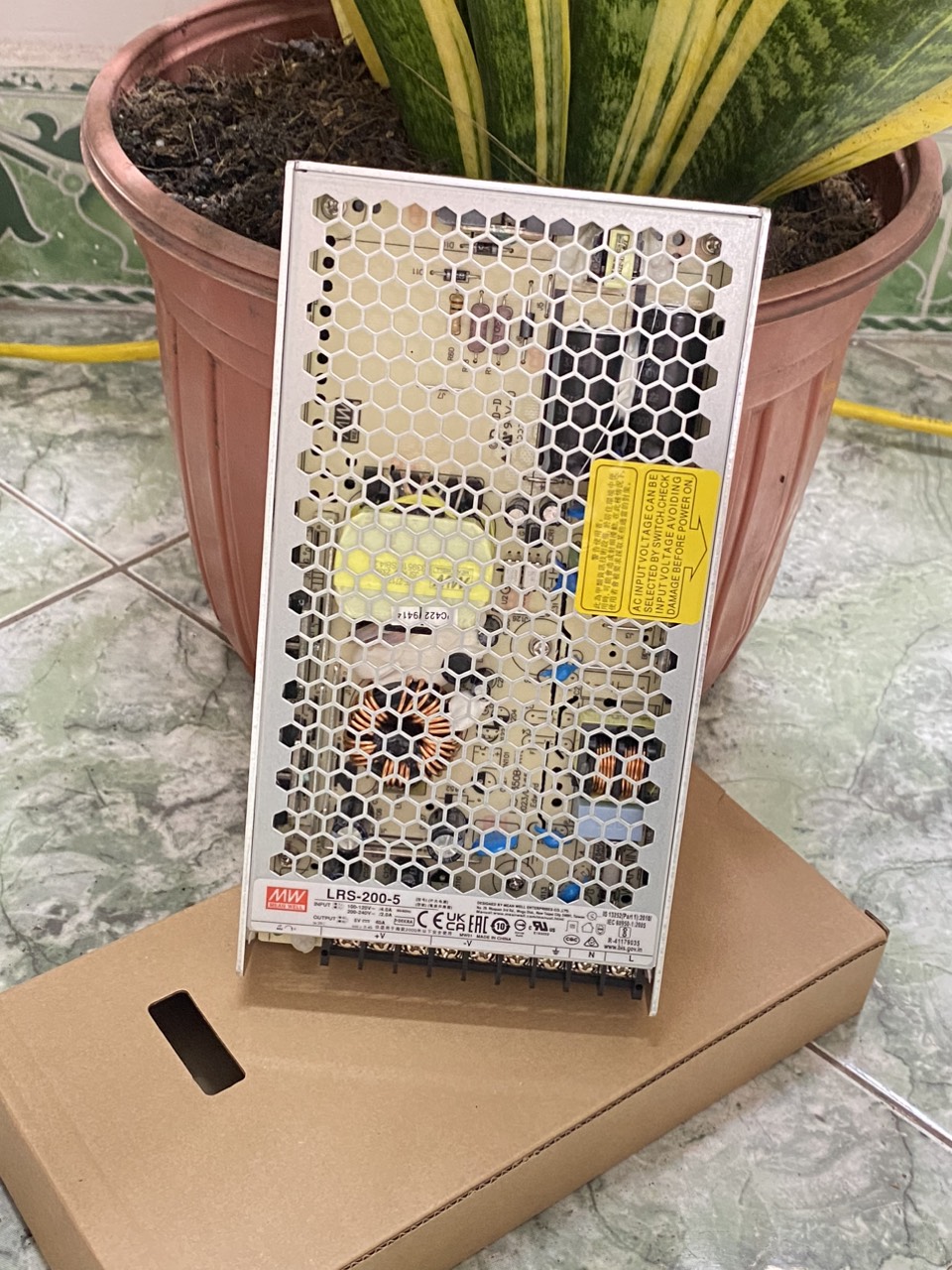

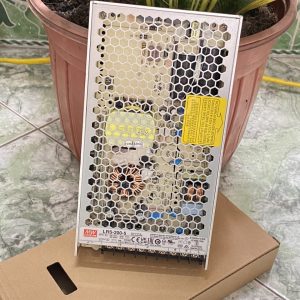

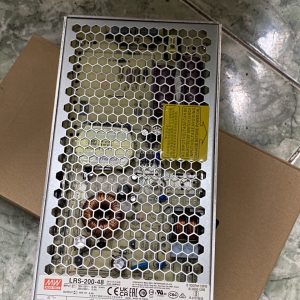

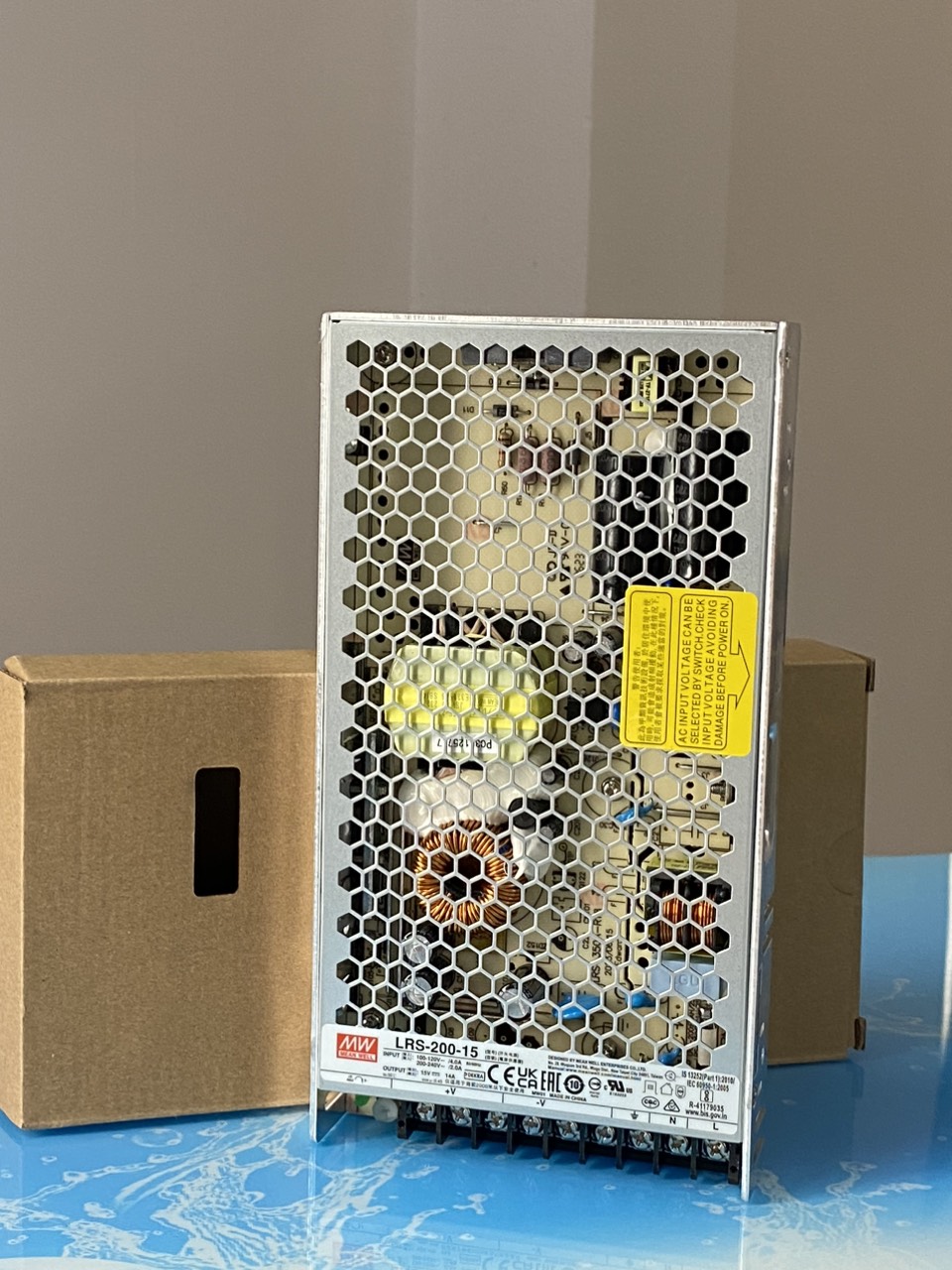

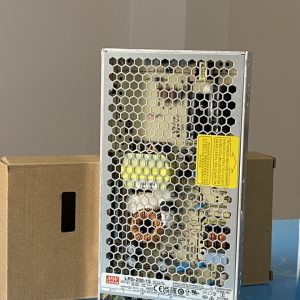

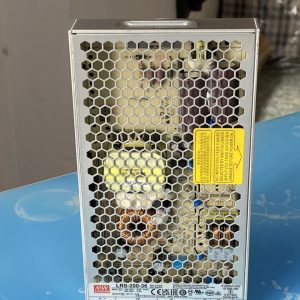

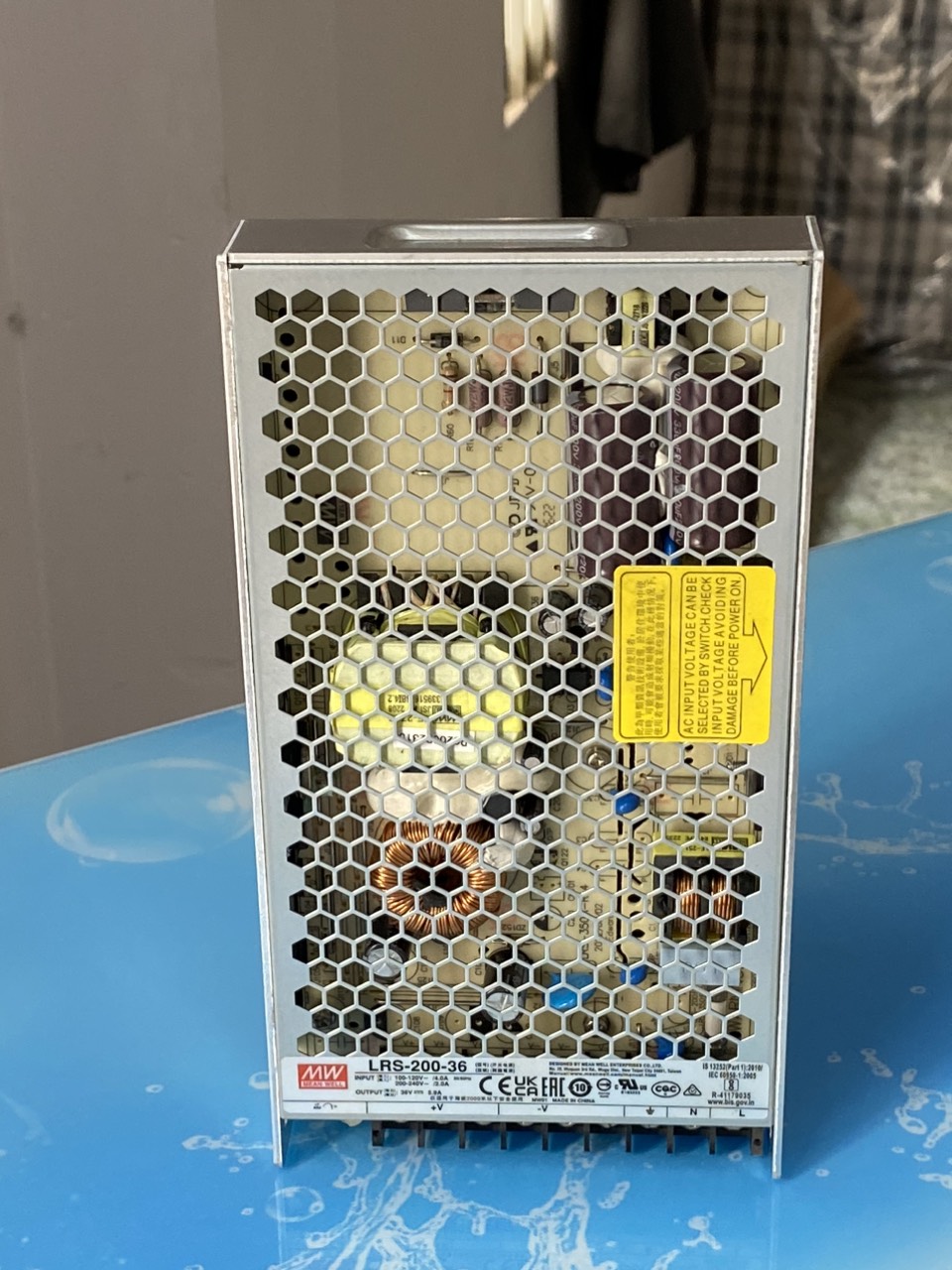

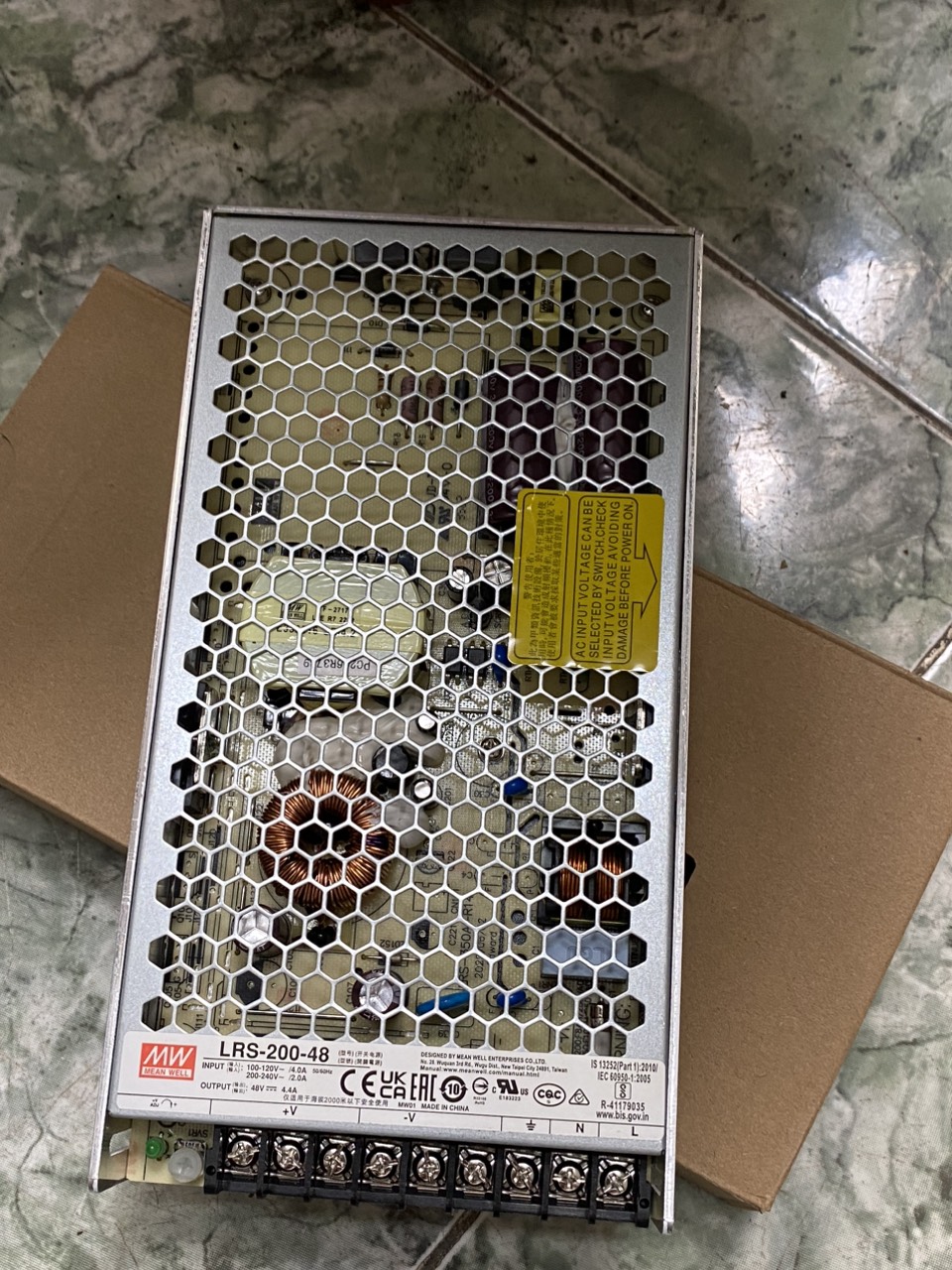

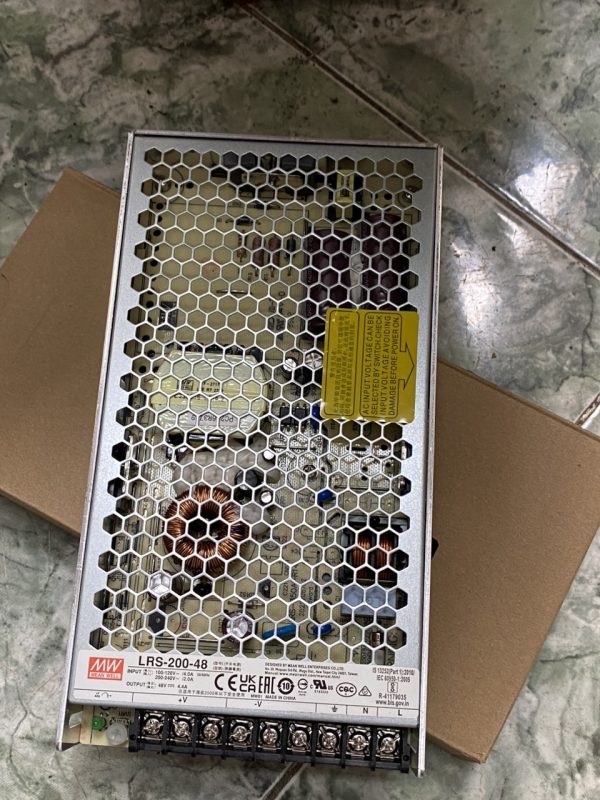

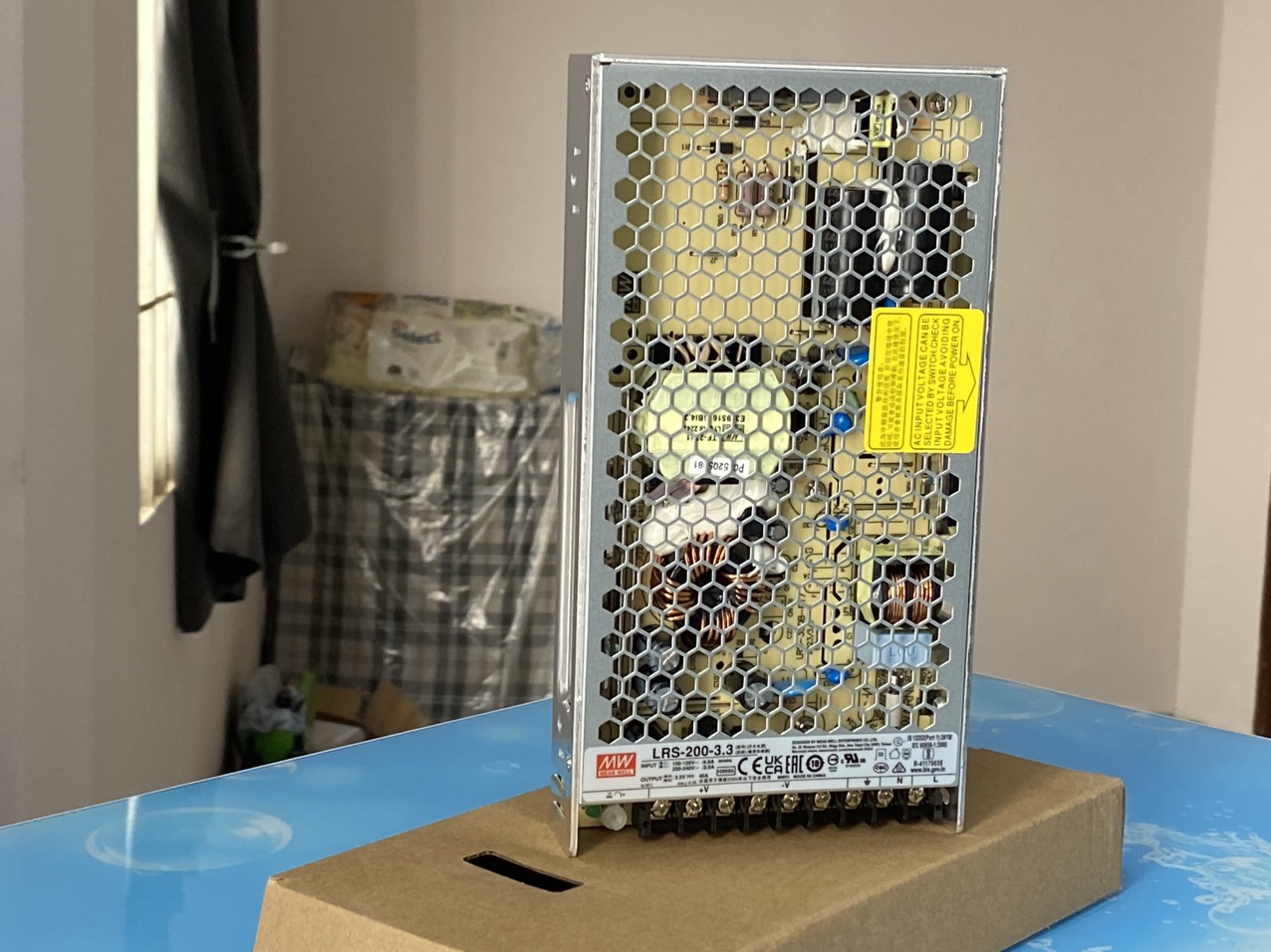

LRS-200 Mean Well

58 AUD – 60 AUD

LRS-200

Brand: Mean Well
Warranty: 24 months
GENUINE PRODUCTS GUARANTEED

SKU: N/A Categories: ,

LRS-200



MODEL LRS-200-3.3 LRS-200-4.2 LRS-200-5 LRS-200-12 LRS-200-15 LRS-200-24 LRS-200-36 LRS-200-48














OUTPUT

 DC VOLTAGE 3.3V 4.2V 5V 12V 15V 24V 36V 48V
RATED CURRENT 40A 40A 40A 17A 14A 8.8A 5.9A 4.4A
CURRENT RANGE 0 ~ 40A 0 ~ 40A 0 ~ 40A 0 ~ 17A 0 ~ 14A 0 ~ 8.8A 0 ~ 5.9A 0 ~ 4.4A
RATED POWER 132W 168W 200W 204W 210W 211.2W 212.4W 211.2W
RIPPLE & NOISE (max.) Note.2 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 200mVp-p
VOLTAGE ADJ. RANGE 2.97 ~ 3.6V 3.6 ~ 4.4V 4.5 ~ 5.5V 10.2 ~ 13.8V 13.5 ~ 18V 21.6 ~ 28.8V 32.4 ~ 39.6V 43.2 ~ 52.8V
VOLTAGE TOLERANCE Note.3 ±3.0% ±4.0% ±3.0% ±1.5% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION Note.4 ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION Note.5 ±2.5% ±2.5% ±2.0% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 1300ms, 50ms/230VAC  1300ms,50ms/115VAC at full load
HOLD UP TIME (Typ.) 16ms/230VAC  12ms/115VAC at full load






INPUT

 VOLTAGE RANGE 90 ~ 132VAC / 180 ~ 264VAC by switch          240 ~ 370VDC  (switch on 230VAC)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 83% 86% 87% 87.5% 88% 89.5% 89.5% 90%
AC CURRENT (Typ.) 4A/115VAC     2.2A/230VAC
INRUSH CURRENT (Typ.) COLD STAR 60A/115VAC 60A/230VAC
LEAKAGE CURRENT <2mA / 240VAC






PROTECTION



OVER LOAD

 110 ~ 140% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed


OVER VOLTAGE

 3.8 ~ 4.45V 4.6 ~ 5.4V 5.75 ~ 6.75V 13.8 ~ 16.2V 18 ~ 21V 28.8 ~ 33.6V 41.4 ~ 46.8V 55.2 ~ 64.8V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE Hiccup mode, recovers automatically after fault condition is removed






ENVIRONMENT

 WORKING TEMP. -25 ~ +70℃ (Refer to “Derating Curve”)
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/℃ (0 ~ 50℃)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes


SAFETY

 SAFETY STANDARDS UL60950-1, BSMI CNS14336-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC  I/P-FG:2KVAC  O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION Compliance to BSMI CNS13438, EAC TP TC 020
EMC IMMUNITY Compliance to EAC TP TC 020


OTHERS

 MTBF 347.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION 215*115*30mm (L*W*H)
PACKING 0.66Kg; 15pcs/10.9Kg/0.78CUFT

Contact information: Van Hao Pty Ltd- Mean Well Australia

–  Address: 1A Welfare Parade Ashburton VIC, 3147Australia
– Phone: +61398853030
– Email: meanwell168@gmail.com / nguonvn.meanwell@gmail.com
– Website: https://meanwellaustralia.au/

Voltage Required

3.3V, 5V, 12V, 15V, 24V, 27V, 36V, 48V
