LRS-350 Mean Well

70 AUD – 72 AUD

LRS-350

Brand: Mean Well
Stock: call
Product quality: 100% new
Warranty: 24 months
GENUINE PRODUCTS GUARANTEED

SKU: N/A Categories: ,

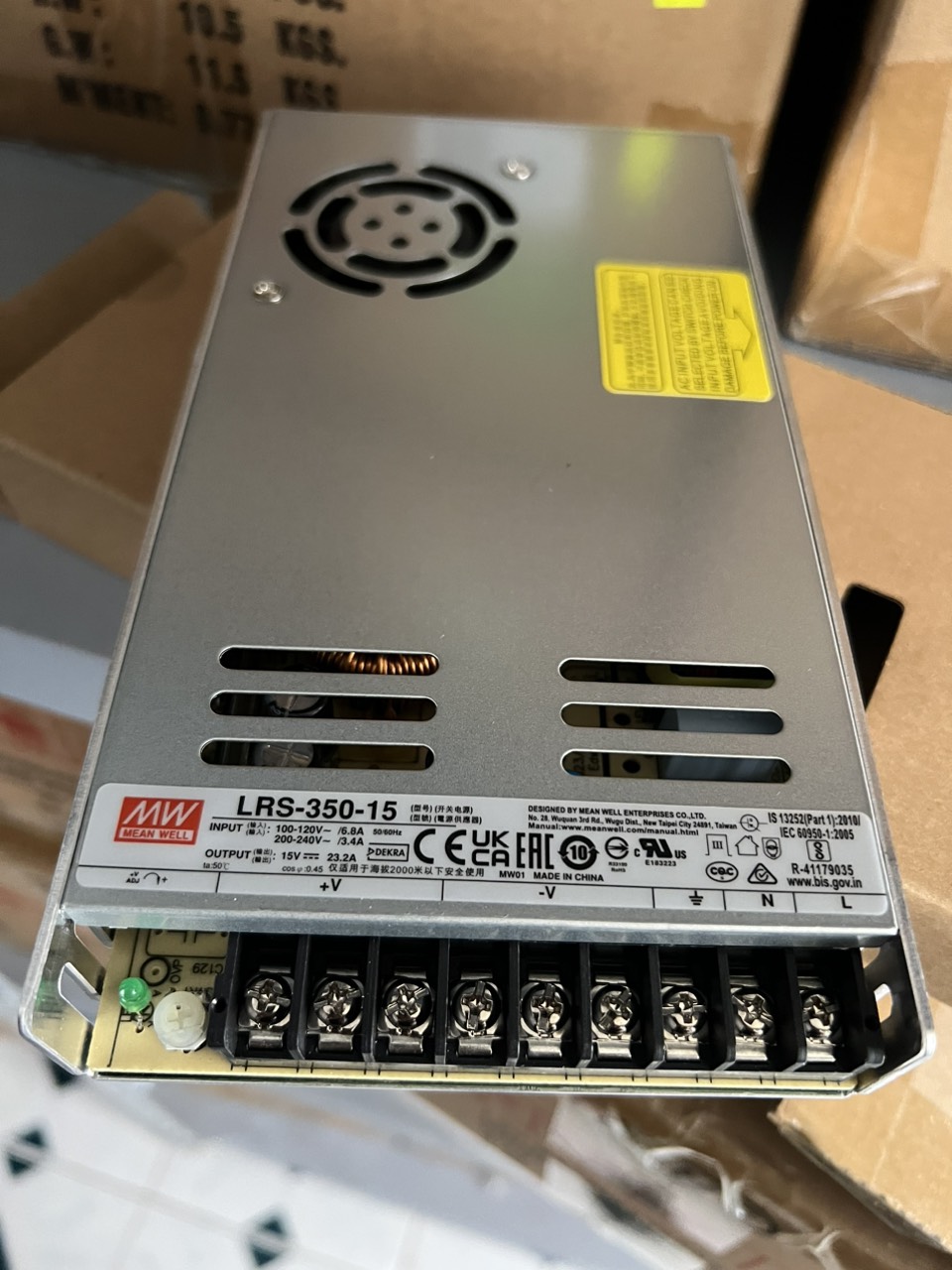

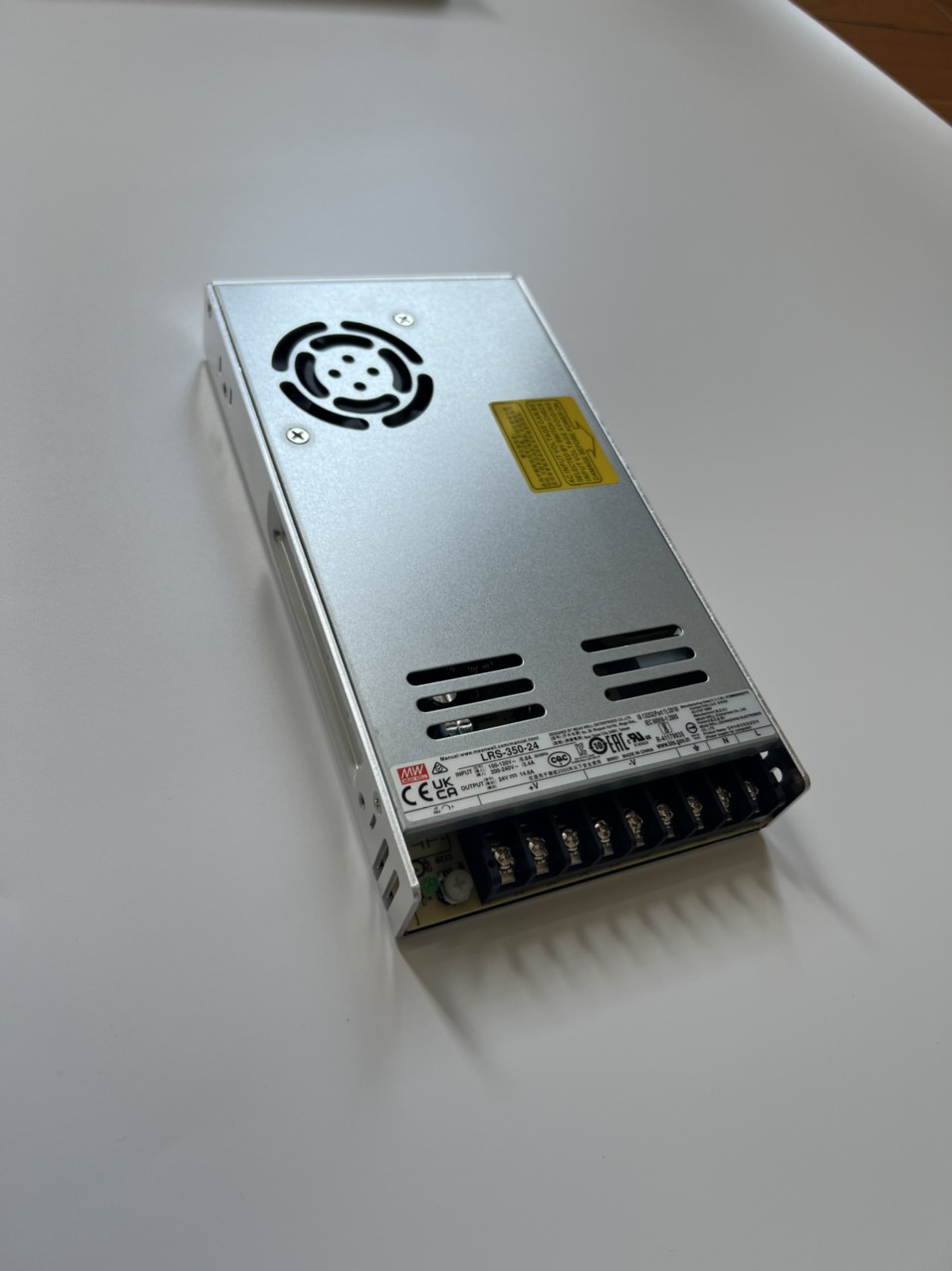

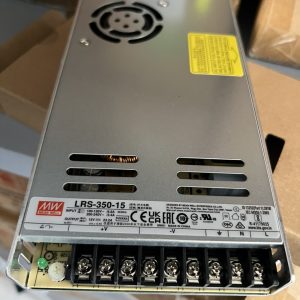

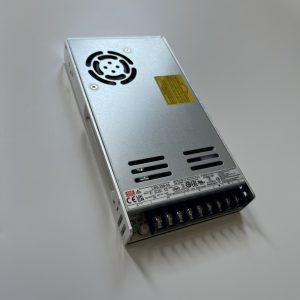

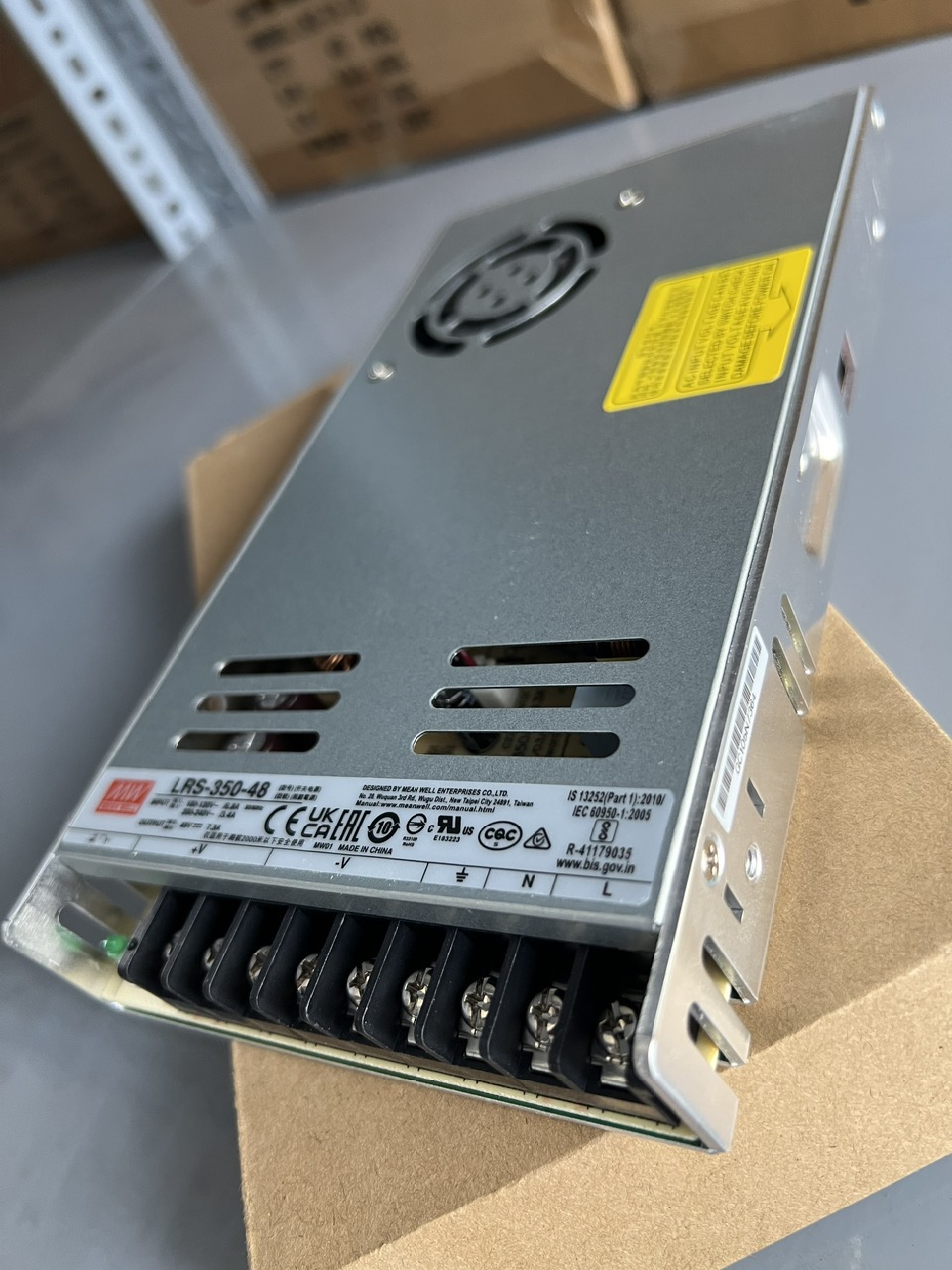

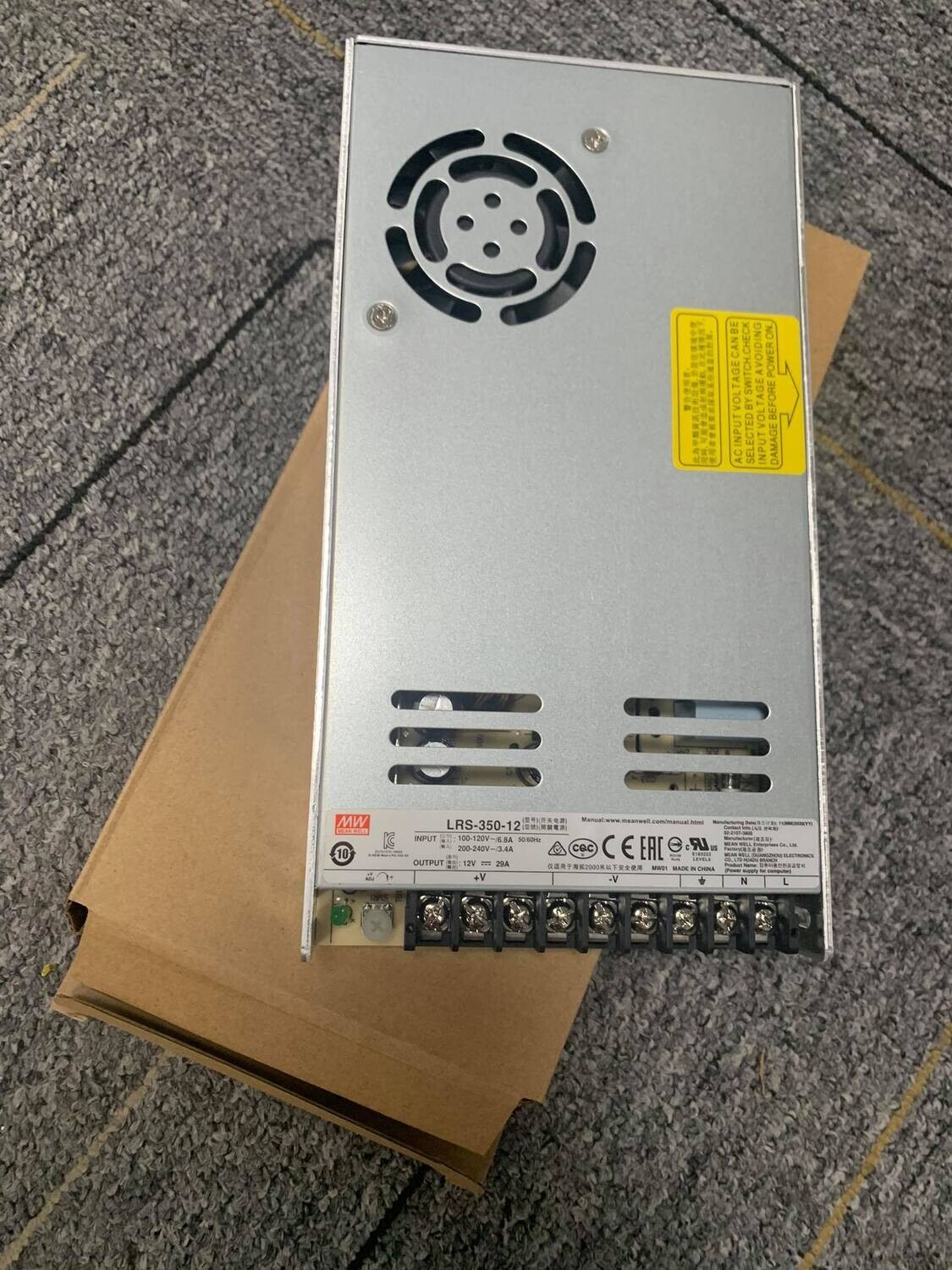

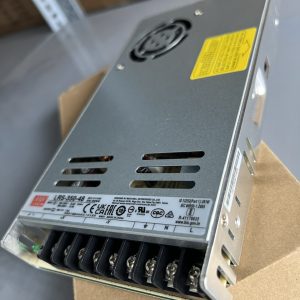

LRS-350 Mean Well

SPECIFICATION

MODEL LRS-350-3.3 LRS-350-4.2 LRS-350-5 LRS-350-12 LRS-350-15 LRS-350-24 LRS-350-36 LRS-350-48














OUTPUT

 DC VOLTAGE 3.3V 4.2V 5V 12V 15V 24V 36V 48V
RATED CURRENT 60A 60A 60A 29A 23.2A 14.6A 9.7A 7.3A
CURRENT RANGE 0 ~ 60A 0 ~ 60A 0 ~ 60A 0 ~ 29A 0 ~ 23.2A 0 ~ 14.6A 0 ~ 9.7A 0 ~ 7.3A
RATED POWER 198W 252W 300W 348W 348W 350.4W 349.2W 350.4W
RIPPLE & NOISE (max.) Note.2 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 200mVp-p
VOLTAGE ADJ. RANGE 2.97 ~ 3.6V 3.6 ~ 4.4V 4.5 ~ 5.5V 10.2 ~ 13.8V 13.5 ~ 18V 21.6 ~ 28.8V 32.4 ~ 39.6V 43.2 ~ 52.8V
VOLTAGE TOLERANCE Note.3 ±4.0% ±4.0% ±3.0% ±1.5% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION Note.4 ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION Note.5 ±2.5% ±2.5% ±2.0% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 1300ms, 50ms/230VAC  1300ms,50ms/115VAC at full load
HOLD UP TIME (Typ.) 16ms/230VAC  12ms/115VAC at full load






INPUT

 VOLTAGE RANGE 90 ~ 132VAC / 180 ~ 264VAC by switch           240 ~ 370VDC  (switch on 230VAC)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 79.5% 81.5% 83.5% 85% 86% 88% 88.5% 89%
AC CURRENT (Typ.) 6.8A/115VAC      3.4A/230VAC
INRUSH CURRENT (Typ.) 60A/115VAC     60A/230VAC
LEAKAGE CURRENT <2mA / 240VAC






PROTECTION



OVER LOAD

 110 ~ 140% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed


OVER VOLTAGE

 3.8 ~ 4.45V 4.6 ~ 5.4V 5.75 ~ 6.75V 13.8 ~ 16.2V 18 ~ 21V 28.8 ~ 33.6V 41.4 ~ 46.8V 55.2 ~ 64.8V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE Hiccup mode, recovers automatically after fault condition is removed


FUNCTION

 FAN ON/OFF CONTROL

(Typ.)

 RTH3≧50℃ FAN ON, ≦40℃ FAN OFF






ENVIRONMENT

 WORKING TEMP. -25 ~ +70℃ (Refer to “Derating Curve”)
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/℃ (0 ~ 50℃)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes






SAFETY

 SAFETY STANDARDS UL60950-1, BSMI CNS14336-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC  I/P-FG:2KVAC  O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH
EMC EMISSION Compliance to BSMI CNS13438, EAC TP TC 020
EMC IMMUNITY Compliance to EAC TP TC 020


OTHERS

 MTBF 327.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION 215*115*30mm (L*W*H)
PACKING 0.76Kg; 15pcs/12.4Kg/0.78CUFT
