LRS-600 Mean Well

120 AUD – 130 AUD

LRS-600

Brand: Mean Well
Warranty: 24 months
GENUINE PRODUCTS GUARANTEED

SKU: N/A Categories: ,

LRS-600

Catologue LRS-600

Mean Well

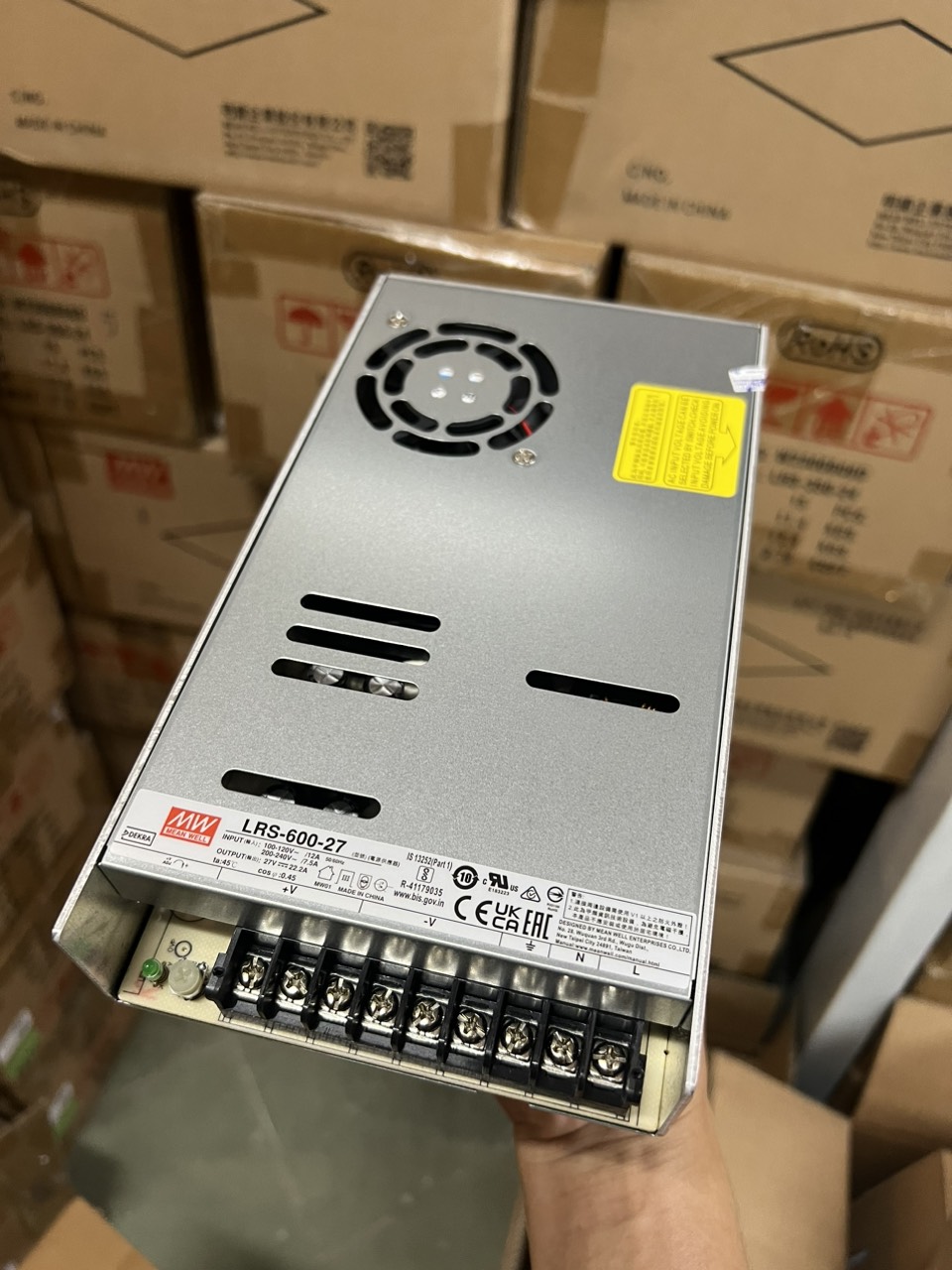

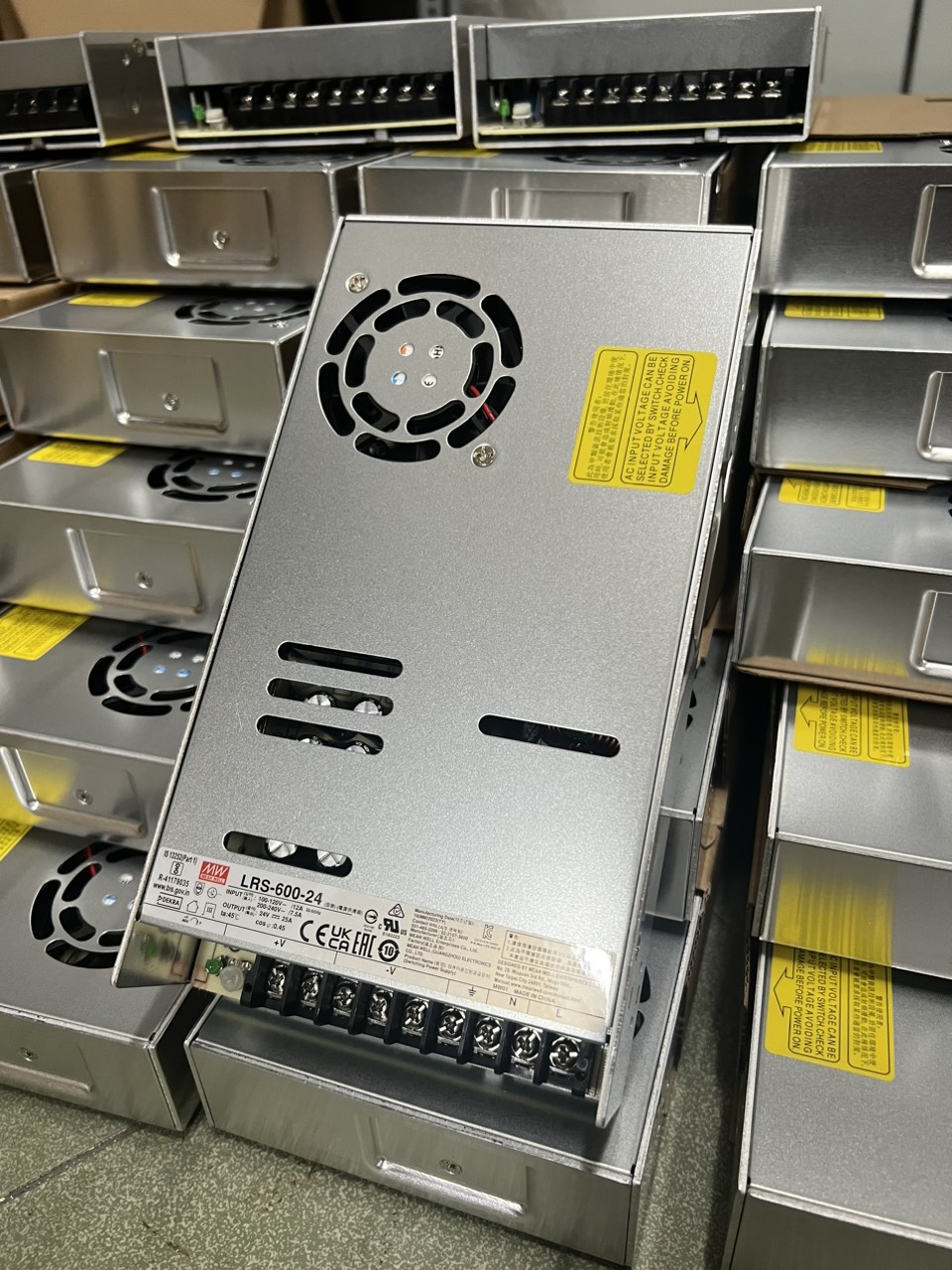

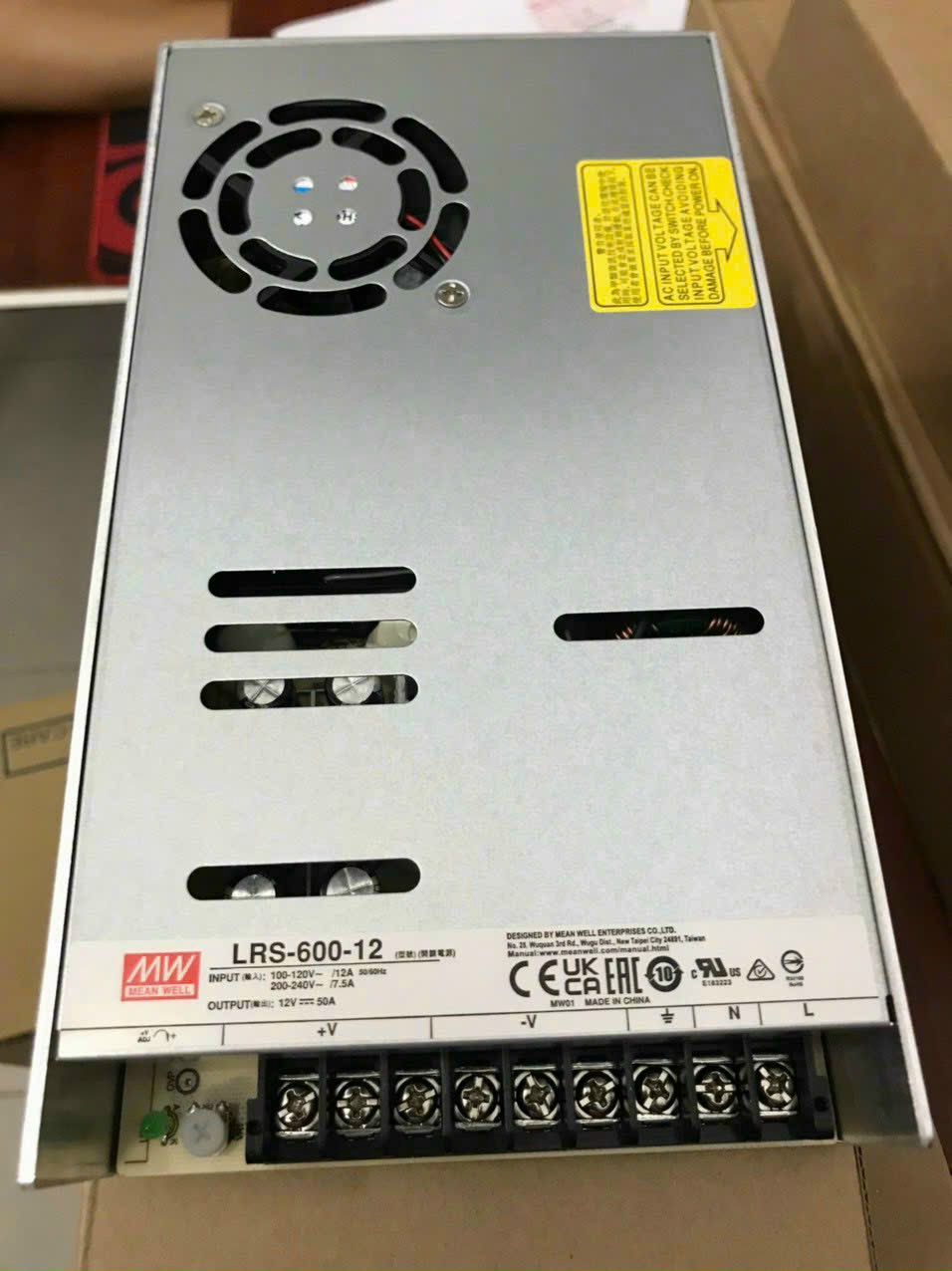

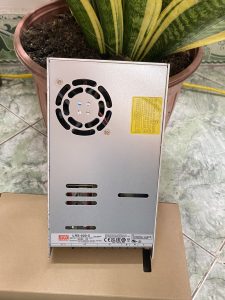

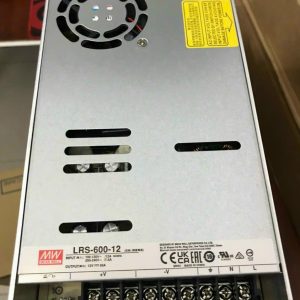

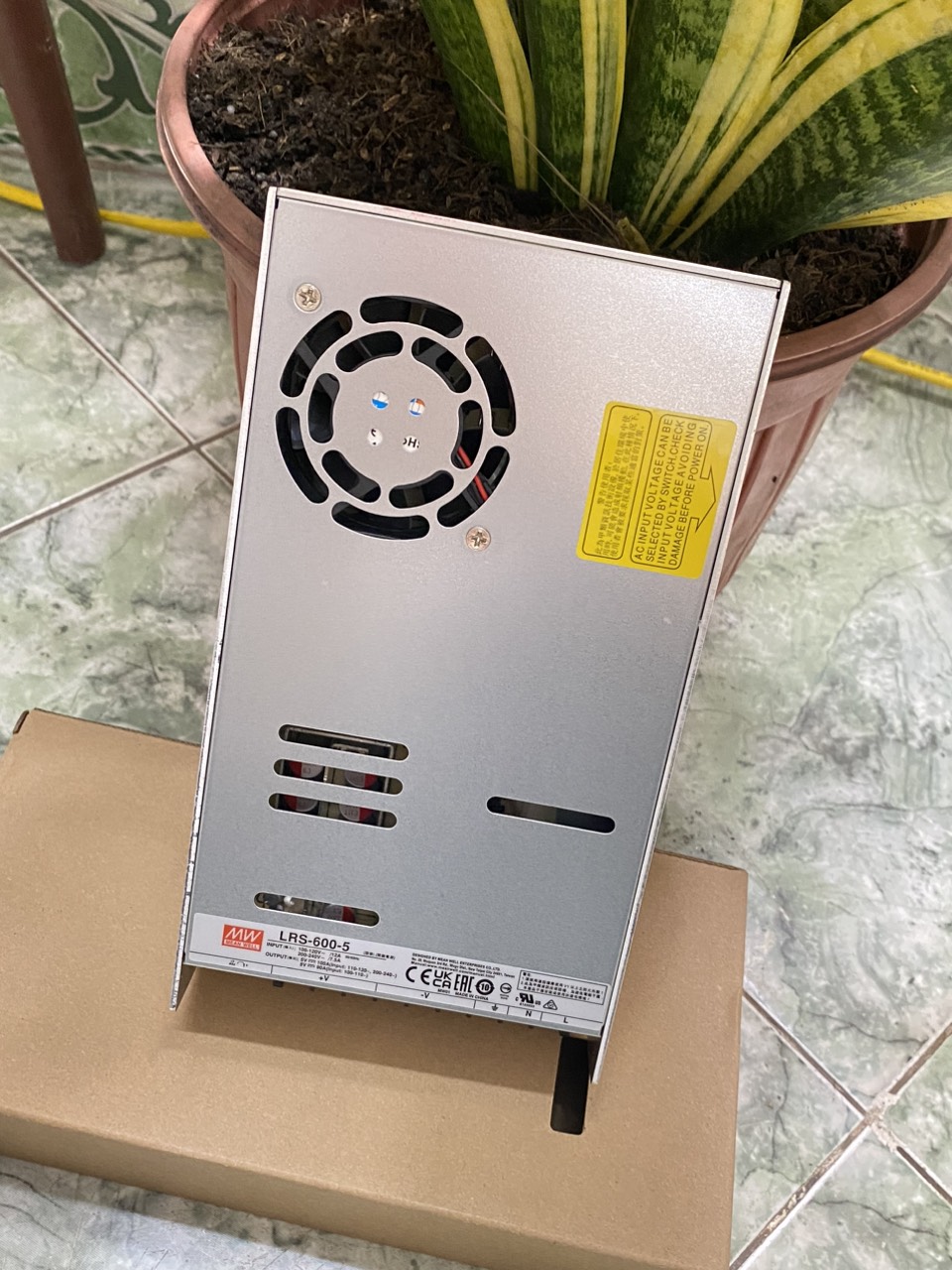

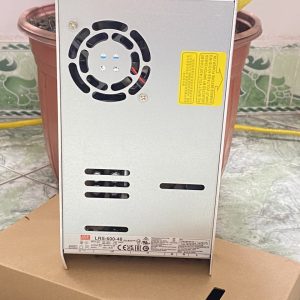

MODEL LRS-600-5 LRS-600-12 LRS-600-15 LRS-600-24 LRS-600-27 LRS-600-36 LRS-600-48














OUTPUT

 DC VOLTAGE 5V 12V 15V 24V 27V 36V 48V
RATED CURRENT 100A 50A 40A 25A 22.2A 16.6A 12.5A
CURRENT RANGE 0 ~ 100A 0 ~ 50A 0 ~ 40A 0 ~ 25A 0 ~ 22.2A 0 ~ 16.6A 0 ~ 12.5A
RATED POWER 500W 600W 600W 600W 599.4W 597.6W 600W
RIPPLE & NOISE (max.) Note.2 200mVp-p 200mVp-p 200mVp-p 240mVp-p 270mVp-p 360mVp-p 360mVp-p
VOLTAGE ADJ. RANGE Note.3 4.75 ~ 5.5V 11.4 ~ 13.2V 14.25 ~ 16.5V 22.8 ~ 26.4V 25.65 ~ 29.7V 34.2 ~ 39.6V 45.6 ~ 52.8V
VOLTAGE TOLERANCE Note.4 ±2.0% ±1.5% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION  Note.5 ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION Note.6 ±2.0% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME Note.7 1300ms, 50ms/230VAC         1300ms,50ms/115VAC at full load
HOLD UP TIME (Typ.) 20ms/230VAC      16ms/115VAC at full load








INPUT

 VOLTAGE RANGE  Note.8 90 ~ 132VAC / 180 ~ 264VAC by switch            255 ~ 370VDC (swith on 230VAC)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 86% 90% 90% 91% 91% 92% 92%
AC CURRENT (Typ.) 12A/115VAC          7.5A/230VAC
INRUSH CURRENT (Typ.) 35A/115VAC         60A/230VAC
LEAKAGE CURRENT <2mA / 240VAC






PROTECTION

(Note.9)



OVER LOAD

 105 ~ 150% rated output power
Constant current limiting, unit will shutdown after 3 sec. re-power on to recover


OVER VOLTAGE

 5.75 ~ 6.75V 13.8 ~ 16.2V 18 ~ 21V 27.6 ~ 32.4V 31 ~ 36.5V 41.4 ~ 48.6V 55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover


FUNCTION

 FAN ON/OFF CONTROL

(Typ.)

 RTH3≧50℃ FAN ON, ≦40℃ FAN OFF






ENVIRONMENT

 WORKING TEMP. -20 ~ +65℃ (Refer to “Derating Curve”)
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/℃ (0 ~ 50℃)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes






SAFETY

 SAFETY STANDARDS BS IEC/UL 62368-1, EAC TP TC 004,AS/NZS62368.1 approved,

BIS  IS13252(Part1):2010/IEC60950-1:2005(except  for  48V),BSMI  CNS15598-1
WITHSTAND VOLTAGE I/P-O/P:3KVAC  I/P-FG:2KVAC  O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH
EMC EMISSION Compliance to EAC TP TC 020, BSMI CNS15936
EMC IMMUNITY Compliance to EAC TP TC 020


OTHERS

 MTBF 1533.4K hrs min. Telcordia SR-332(Bellcore) ;         301.7K hrs min.                                                                                MIL-HDBK-217F (25℃)
DIMENSION 225*124*41mm (L*W*H)
PACKING 0.95Kg/12pcs/12.4Kg/0.78CUFT

Contact information: Van Hao Pty Ltd- Mean Well Australia

–  Address: 1A Welfare Parade Ashburton VIC, 3147Australia
– Phone: +61398853030
– Email: meanwell168@gmail.com / nguonvn.meanwell@gmail.com
– Website: https://meanwellaustralia.au/

Voltage Required

3.3V, 5V, 12V, 15V, 24V, 27V, 36V, 48V
